Y53 Series
Transportation - Installation - Energy
-
Optimized
TCO
,
Across
The
Board
-
Change Your Logistics. 78.9% More Capacity

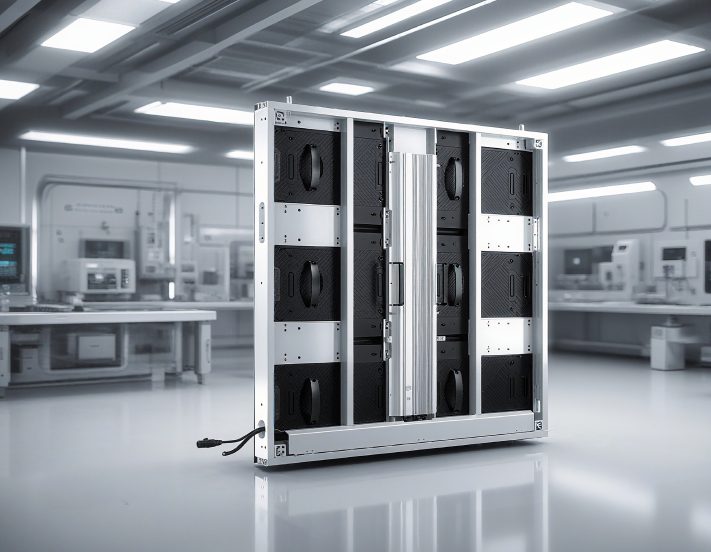

How? Our 68mm ultra-thin cabinets, powered by proprietary rigid interlock, ultra-thin PSU, and conduction cooling tech, allow you to ship dramatically more in every container, dramatically lowering your cost per unit.

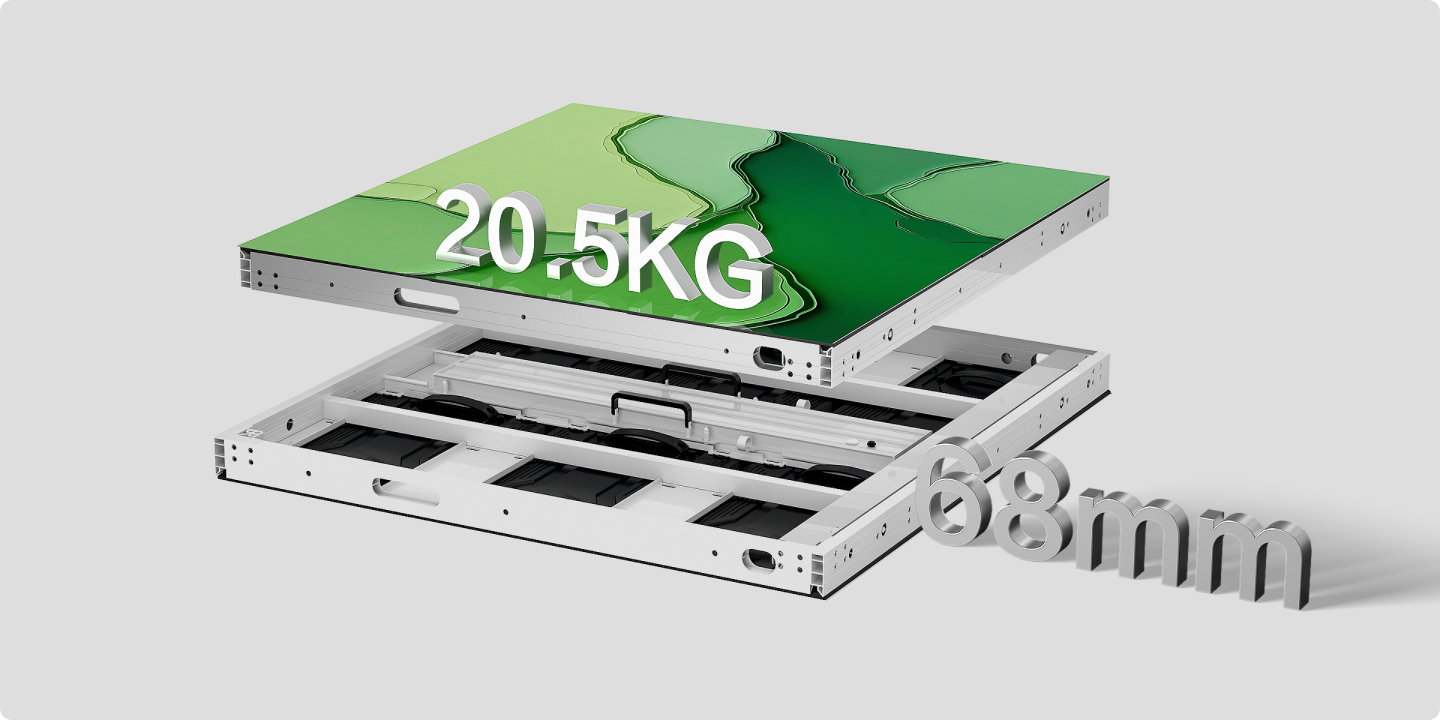

Lighter Cabinets, Lower Costs
Our 20.5kg cabinets drastically reduce the need for heavy structural support, saving you on steel, simplifying builds, and shortening projects. The 960×960mm format enables solo installation, cutting labor costs too.

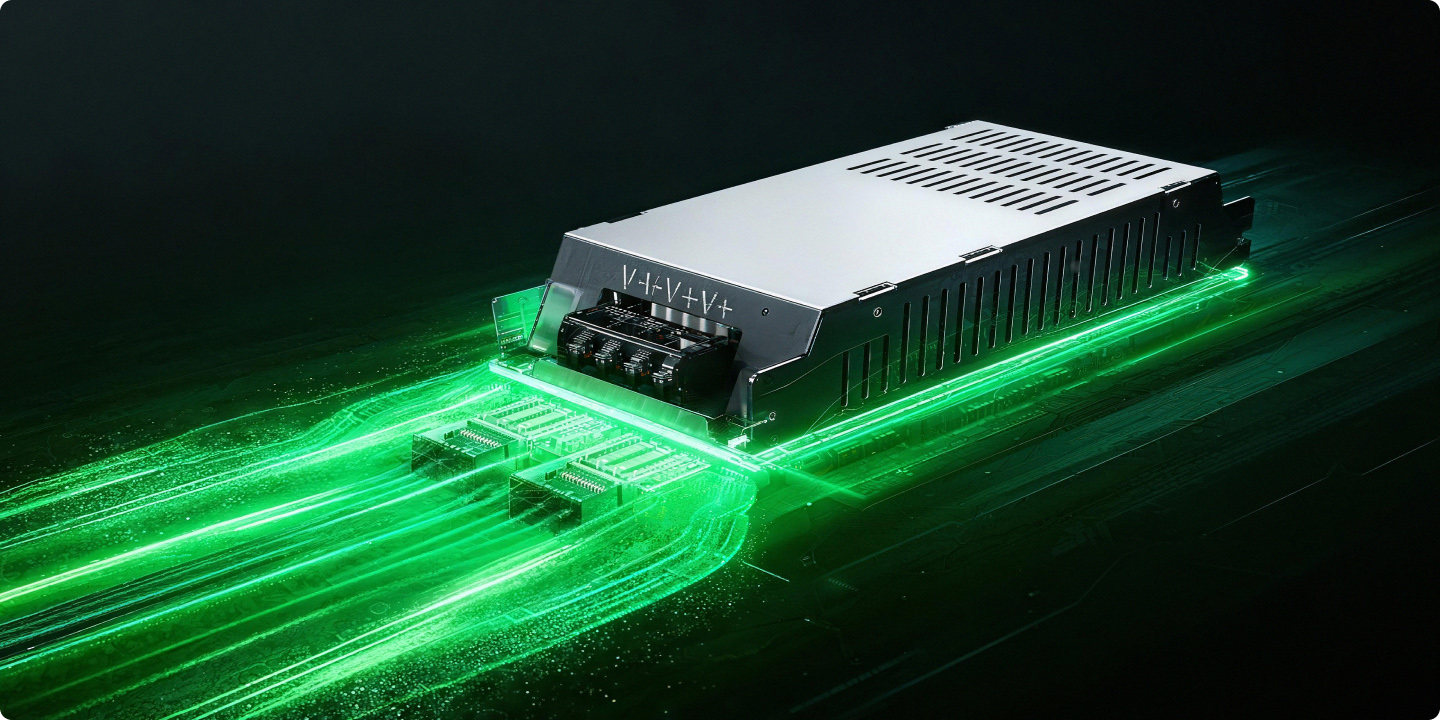

Serious Energy Savings
The Y53 Series uses advanced common cathode power, chip-level regulation, and our ultra-efficient PSU to precisely manage voltage and maximize savings. This means dramatically lower long-term operating costs without compromising on brilliant image quality.
Brilliant in Sunlight. Superb In The Shadows
Experience crystal-clear visibility in direct sunlight and absolute moiré-free filming with stunning, lifelike contrast. The Y53 Series: Born for demanding outdoor environments.

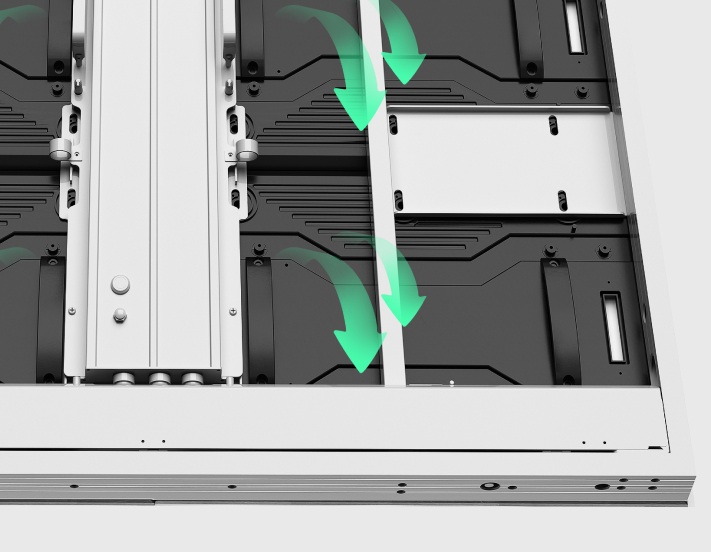

Run Cooler, Last Longer
Our optimized thermal design and energy-smart technologies deliver a dramatic 31.7% reduction in energy use versus previous generations. This superior cooling ensures unwavering reliability and a longer lifespan for your display, cutting long-term costs.

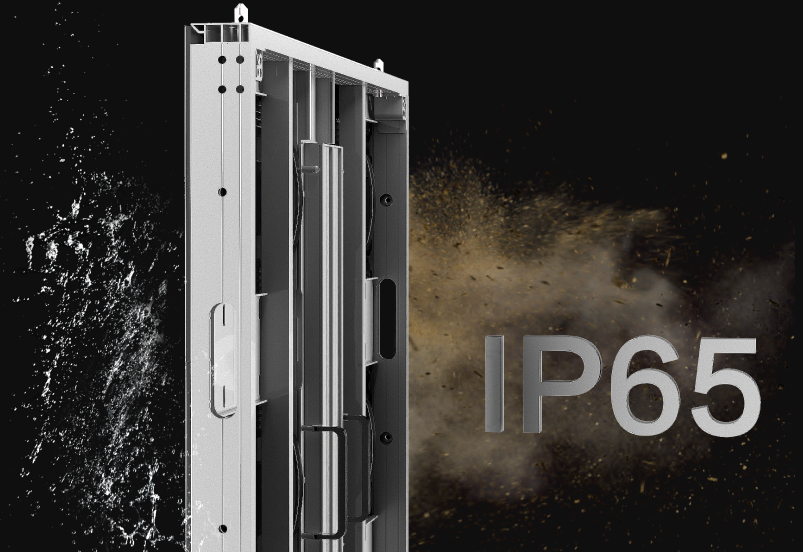

Total Outdoor Protection
Featuring full front-and-rear IP65 protection, our displays are completely sealed against rain and dust. This precision engineering guarantees reliable performance in the toughest conditions, giving you peace of mind and far less maintenance.
Reliability, Tested And Proven
We put every Y53 through extreme tests—including high temperature and high humidity, thermal shock, vibration, and aging tests—before leaving the factory. So it can withstand the toughest outdoor conditions. This commitment to quality means you get a display that runs reliably for years, giving you peace of mind and lasting value.

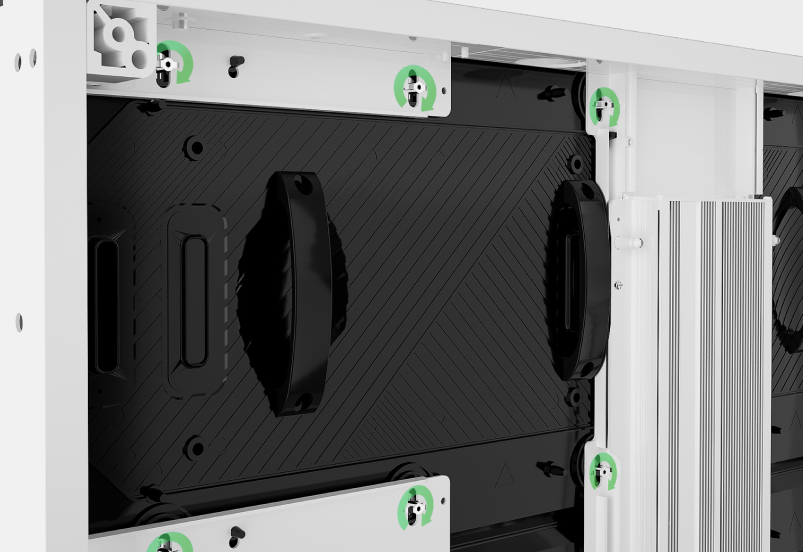

Maintenance Measured In Seconds
The rigid-link quick-install design for LED modules allows for replacement in under 10 seconds. The integrated modular PSU box can be swapped in just 40 seconds. This highly efficient maintenance system drastically reduces troubleshooting time and minimizes losses from operational interruptions.
Unlock Creative Possibilities
With standard (960x960mm), compact (480x320mm), and 90° curved cabinets, the Y53 Series seamlessly integrates into complex architectures. Unleash potential for landmark ads, transportation guides, and other innovative applications.
-

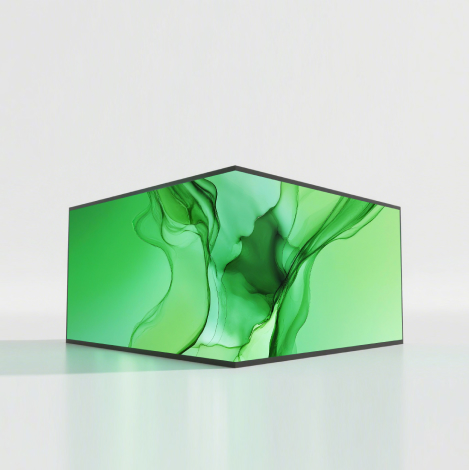

Naked-eye 3D LED Display （90° Corner LED Solution） -

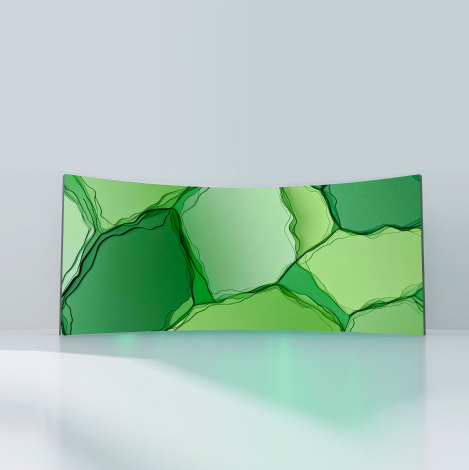

Curved Façade LED Display (for Landmarks) -

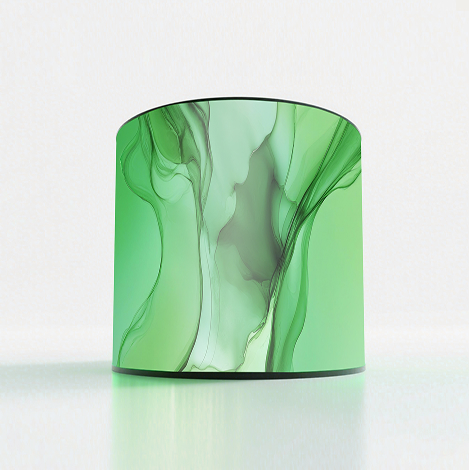

Curved / Cylindrical LED Billboards
Specifications
| Physical Parameters | DY5340 | DY5360 | DY5380 | DY53A0 | DY53-Curve | DY23 |
| Pixel Pitch | 4mm | 6.6mm | 8mm | 10mm | 4 / 6.6/8/10mm | 4 / 6.6/8/10mm |
| Cabinet Size(W x H x D) | 960×960×68mm | 960×960×68mm | 960×960×68mm | 960×960×68mm | 400×960×150mm | 400×960×150mm |
| Cabinet Weight | 20.5kg | 20.5kg | 20.5kg | 20.5kg | 15kg | 5kg |
| Optical Parameters | ||||||
| Brightness(nits = cd/m²) | 5500/6500 | 6000/8000/10000/12500/15000 | 6000/8000/10000/12500/15000 | 6000/8000/10000/12500/15000 | 5500/6500 / 6000/8000/10000/12500/15000 | 5500/6500 / 6000/8000/10000/12500/15000 |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Contrast | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Other Parameters | ||||||
| Maintenance | Front & Rear Access | Front & Rear Access | Front & Rear Access | Front & Rear Access | Front & Rear Access | Front & Rear Access |
| Refresh Rate(Hz) | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
All the data are from CVTE lab. The data above are subject to change without prior notice.
