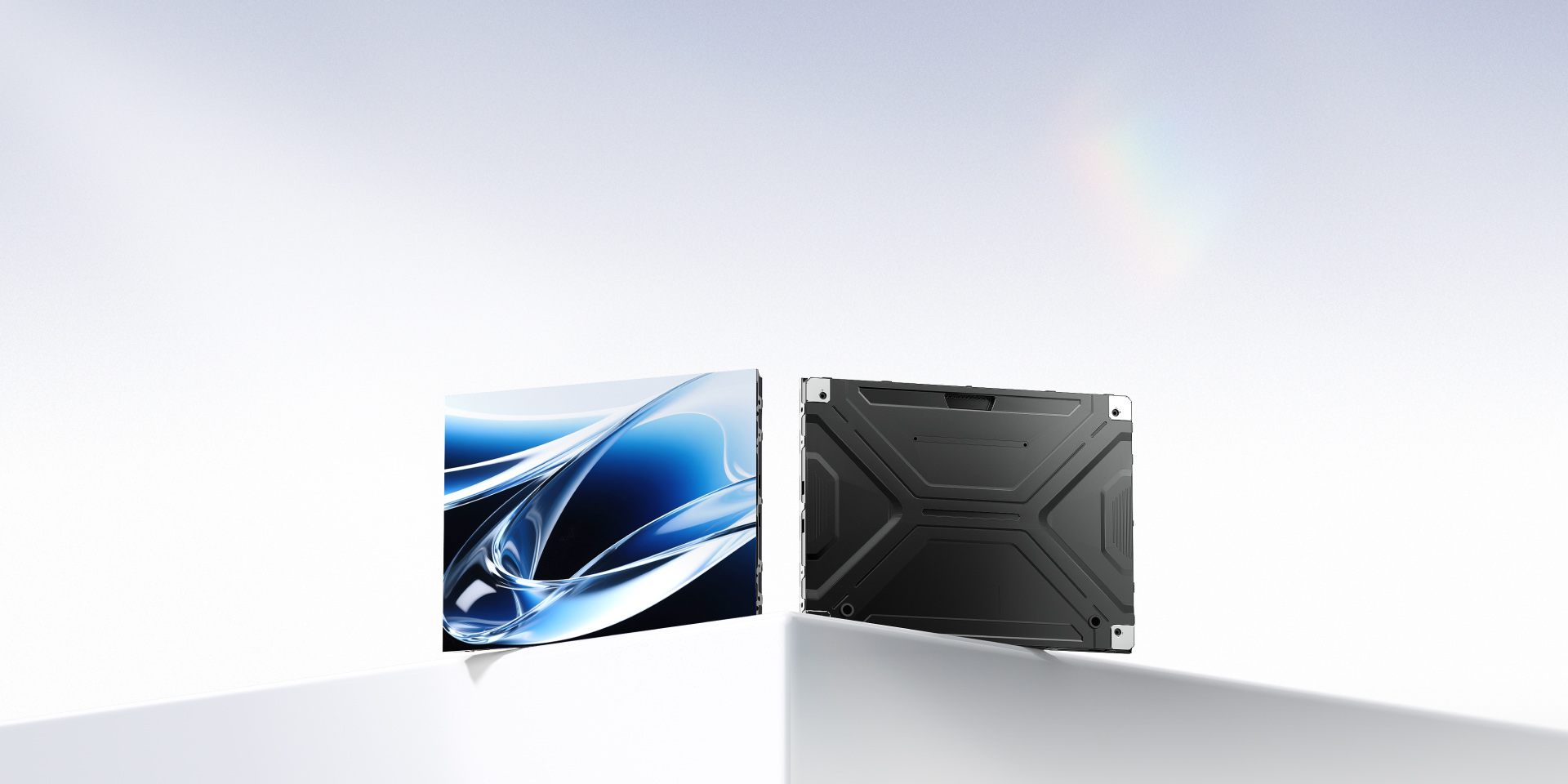

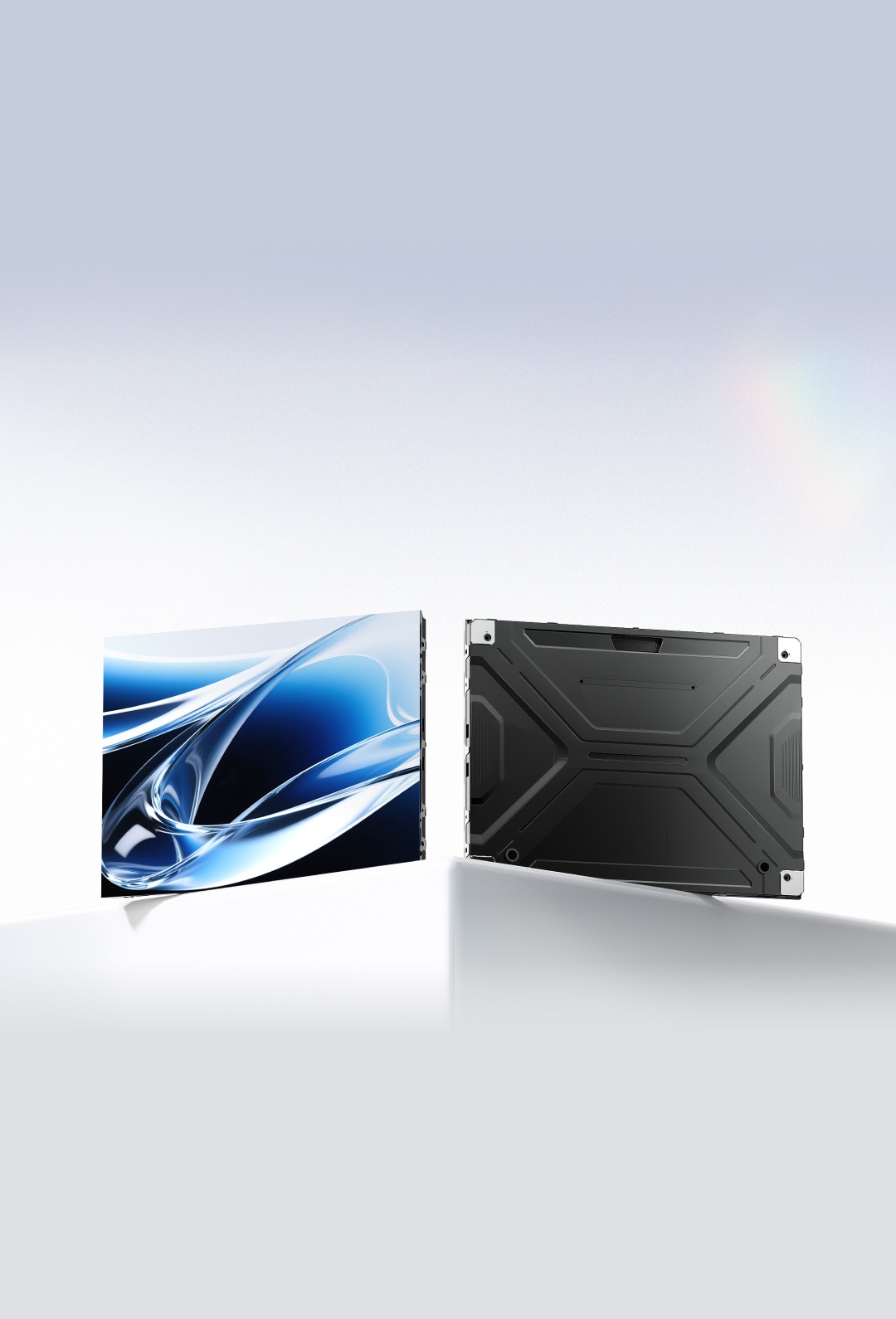

H31 Series

Large Panels, Massive Cabinets, Full Compatibility

H31 Series
Overview Specifications

Faster Installation, Easier Maintenance

Large panel and cabinet design combining precision die-cast aluminum with CNC machining, ensuring exceptional flatness and compatibility across commercial display scenarios.

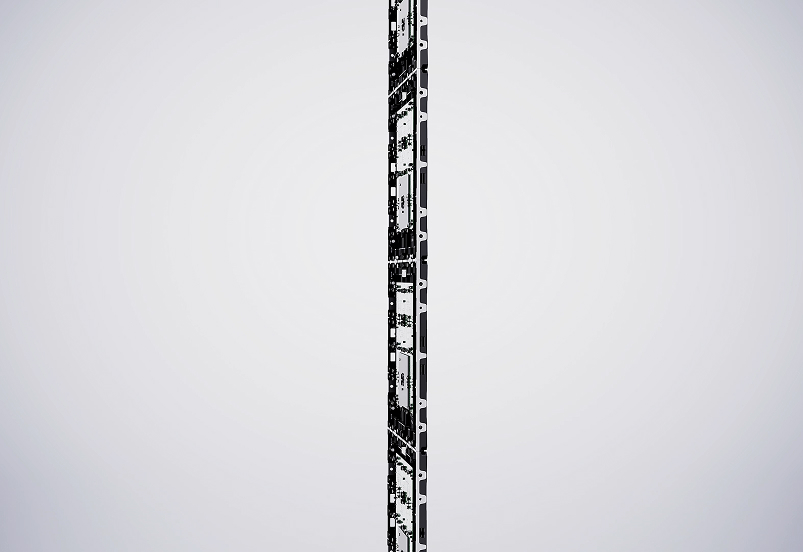

Highly Integrated, Remarkably Reliable

Integrating power, receiver card, and adapter board into a single module for a slimmer profile, reduced radiation, and enhanced anti-interference—ensuring long-term stable performance.

Dual Power, 15% Less Energy*

Precise independent voltage control through RGB chips minimizes energy loss at the chip level, achieving high efficiency and significantly reducing operational power consumption for long-term cost savings.

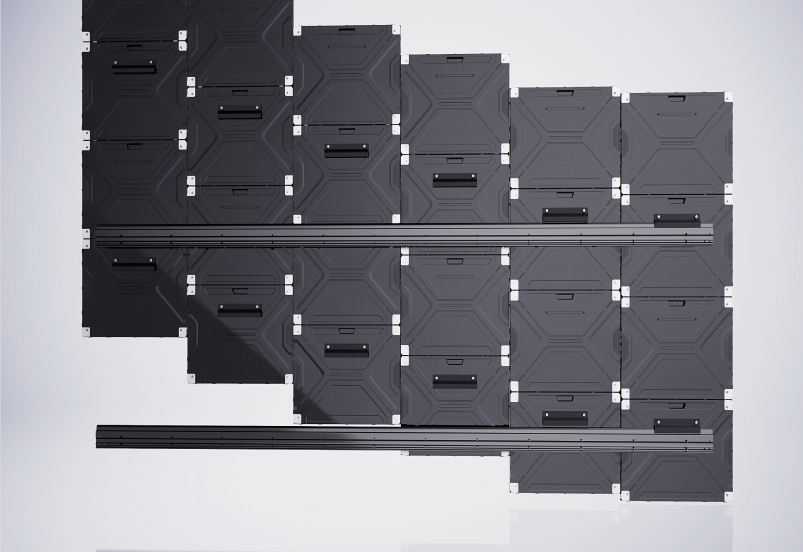

Easy Installation. Space-Saving.

Features standard wall-mounted installation that fits flush against walls without complex steel structures, reducing both time and cost. The full front maintenance design eliminates the need for rear access, maximizing interior space efficiency.

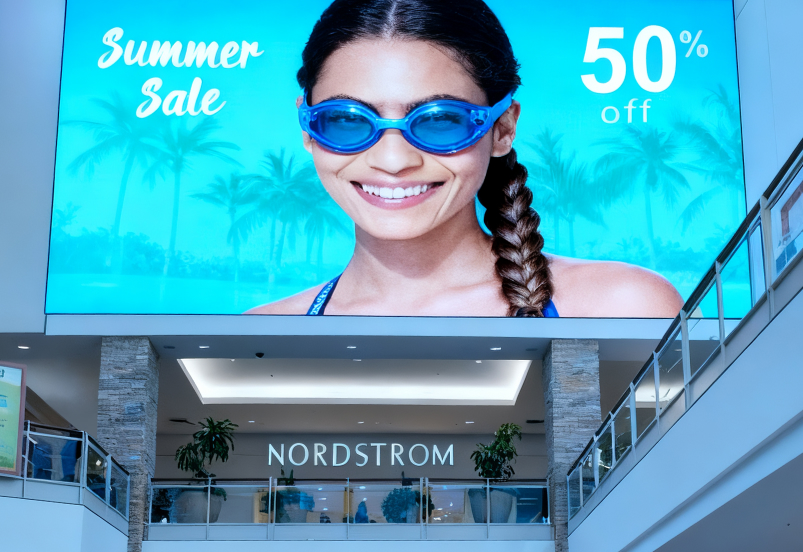

Smooth Grayscale, Clear Captures

Advanced grayscale processing ensures seamless color transitions, while a high refresh rate eliminates flicker and banding during phone or camera recording.

Specifications

Physical Parameters  DH3112  DH3115  DH3118  DH3125
Packaging SMD SMD SMD SMD
Pixel Pitch 1.2mm 1.5mm 1.8mm 2.5mm
Cabinet Size(W x H x D) 640×480×31mm 640×480×31mm 640×480×31mm 640×480×31mm
Cabinet Weight 6.2kg 6.2kg 6.2kg 6.2kg
Optical Parameters
Brightness(nits = cd/m²) 550 550 800/2200 800/2200
Refresh Rate(Hz) 3840 3840 3840 3840
Color Temperature(K) 6500:1 6500:1 6500:1 6500:1

All the data are from CVTE lab. The data above are subject to change without prior notice.
