EG56 Series

Redefine Outdoor Visuals with Ultra-Efficiency

& Smart Perfornnance

EG56 Series
Overview Specifications

Smart Management: Effortless & Efficient

  • Remote Diagnostics | Real-Time Status | Automated Alerts

  • Dedicated Sensor | Real-Time Monitoring | Proactive Alerts

  • Auto-Correction | Zero Manual Effort | Flawless Consistency

CloudOps Panorama
Real-Time Guardian
Self-Optimizing Display

  • Cloud-based platform for continuous remote power monitoring. Instantly receives automated fault code alerts with precise location data when abnormalities occur, enabling rapid response without guesswork.

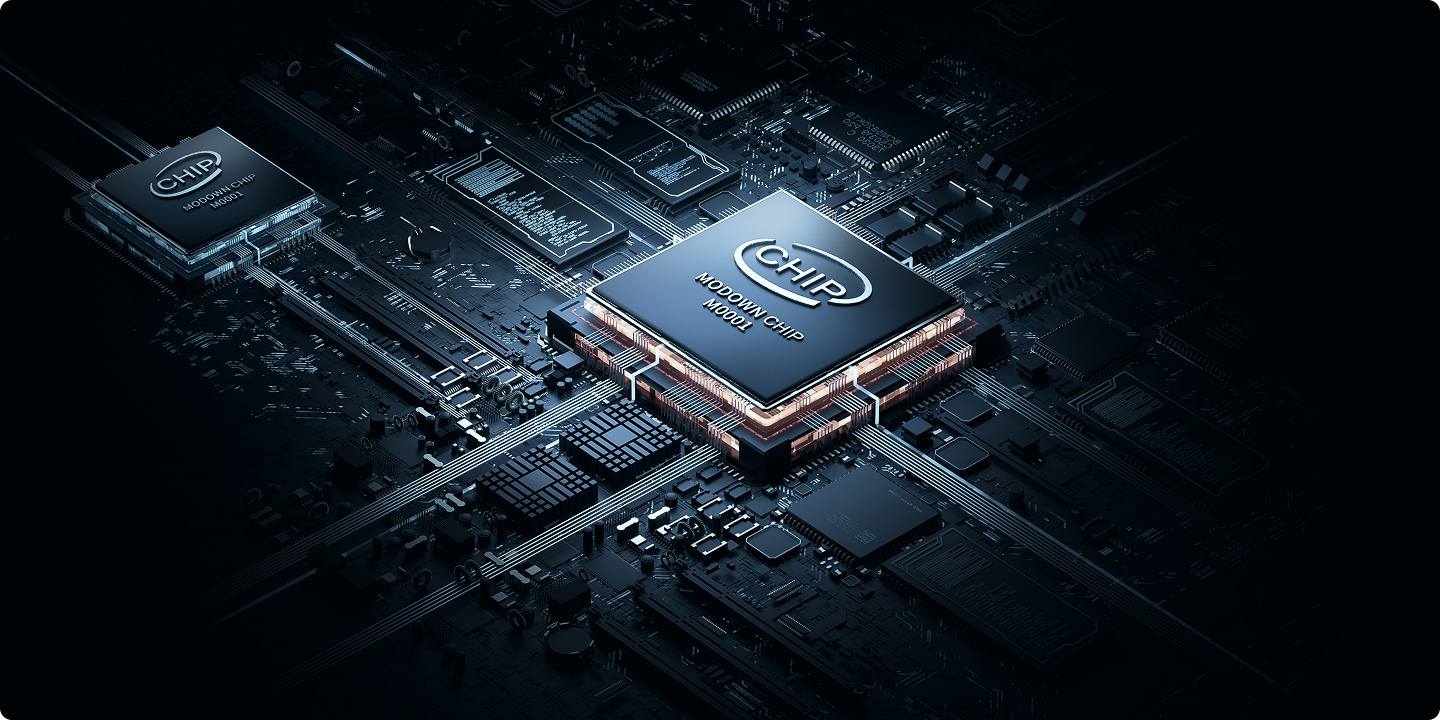

  • Features a built-in independent environmental sensor chip that continuously tracks internal temperature, humidity, and other critical conditions. Delivers intelligent early warnings to mitigate risks before they impact operations.

  • Smart auto-calibration technology continuously optimizes display data, eliminating tedious manual adjustments. Ensures consistently stable and superior image quality with uncompromising reliability.

Smart Energy Saving For Every Scenario

During full-power operation for content display, intelligent power management technology is employed to precisely distribute electricity, significantly improving energy utilization efficiency and reducing operating energy consumption. During nighttime standby, non-essential power is cut off, with the only core wake-up module kept running for instant activation.

8.0W
Standby Power Consumption
60%
Transmission Efficiency Improved
0.05V
Transmission Voltage

Flawless From Bright To Dark

7680Hz Refresh Rate – double the traditional standard – delivers incredibly smooth performance for outdoor advertising. 1000Hz Effective Refresh Rate at 3% Brightness ensures crisp, clear low-light visuals with exceptionally smooth grayscale transitions.

The Focus Of Outdoor Attention

Sunlight Readability
Wide Color Gamut
High Contrast Ratio

  • Up to 15000 nits. Excellent outdoor visibility in any environment.

  • 281 Trillion Shades. Delivers True-to-Life Color with 16-bit Depth.

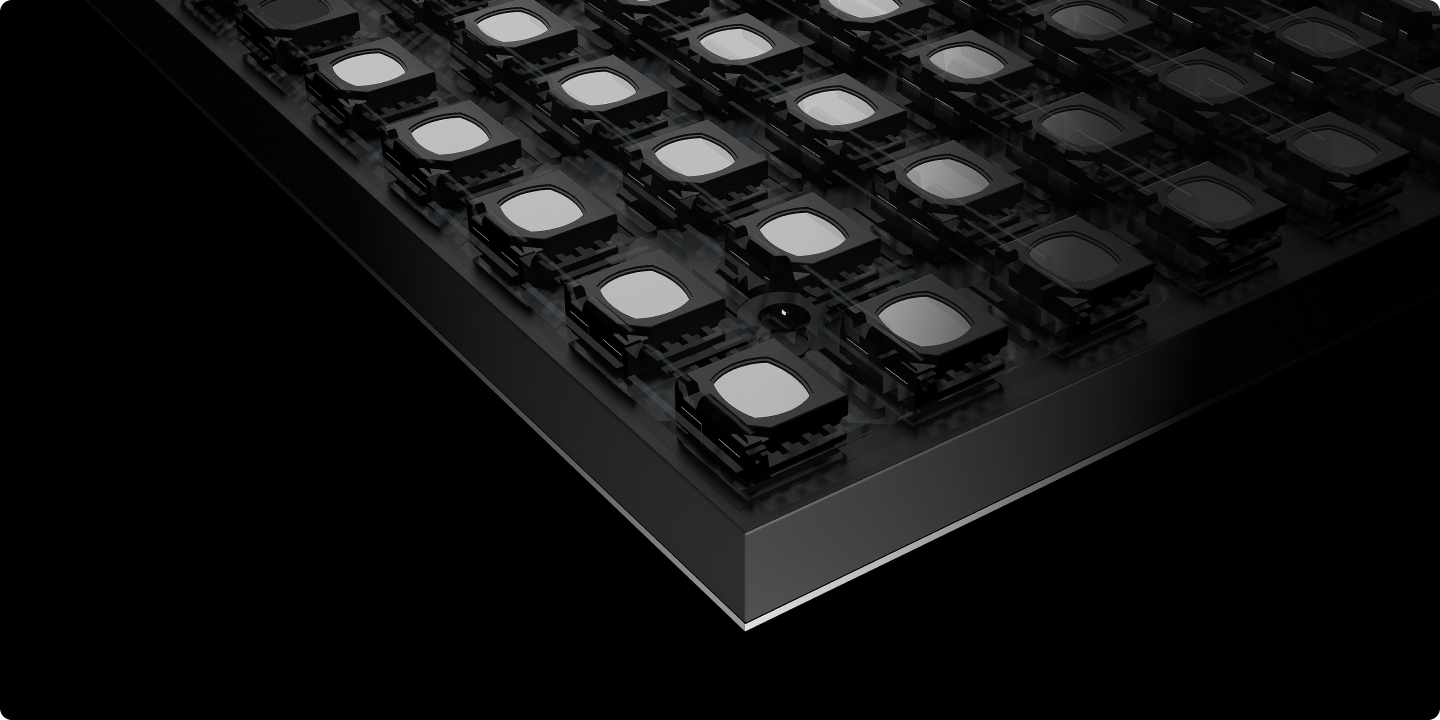

  • A breakthrough in dark field performance, achieved by elevating the physical black ratio from 8:1 to 15:1 through precise LED layout.

Ultimate Protection And Performance

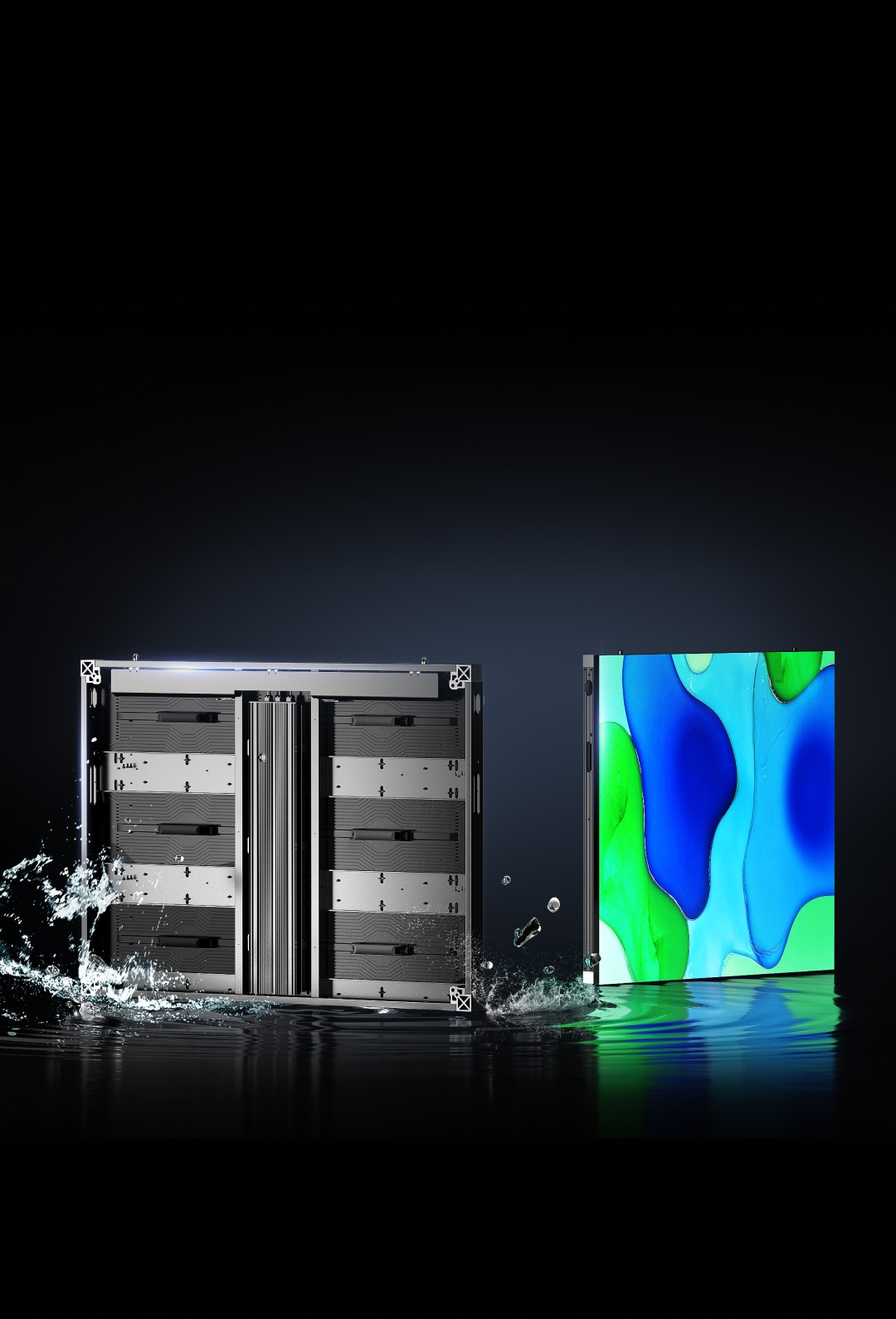

Advanced Multi-Directional Pressure Seal The panel utilizes a sophisticated multi-directional pressure seal structure, ensuring complete integrity against environmental challenges from all angles.

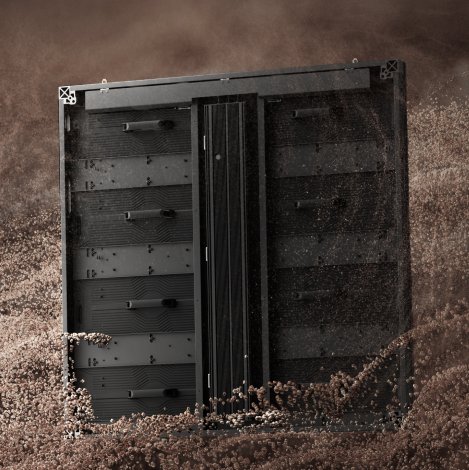

  • Dual-Sided IP66 Protection, ensuring reliable performance in harsh outdoor and industrial settings.
  • PFC technology ensures a stable and efficient power input, safeguarding the entire system against electrical hazards, fluctuations, and inefficiencies.

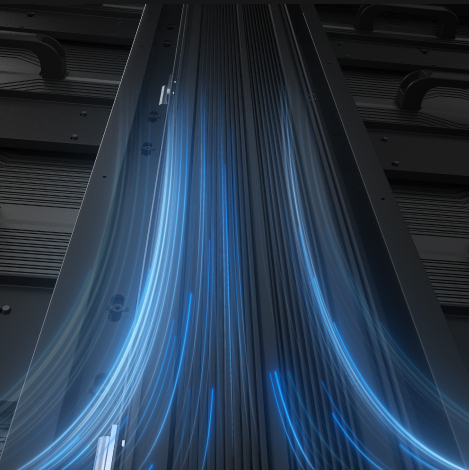

  • 1.4X Better Cooling with Bionic Groove Design for extended product life.

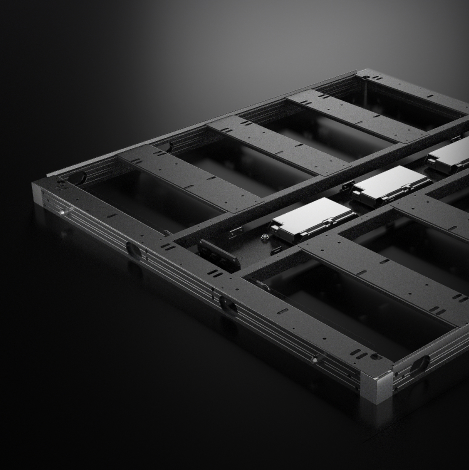

Modular Freedom, Zero Pixel Waste

Like building blocks, our displays offer complete freedom with six different cabinet sizes for seamless combination. Achieve meter-perfect displays without wasting a single pixel, enabling truly flexible and efficient installations.

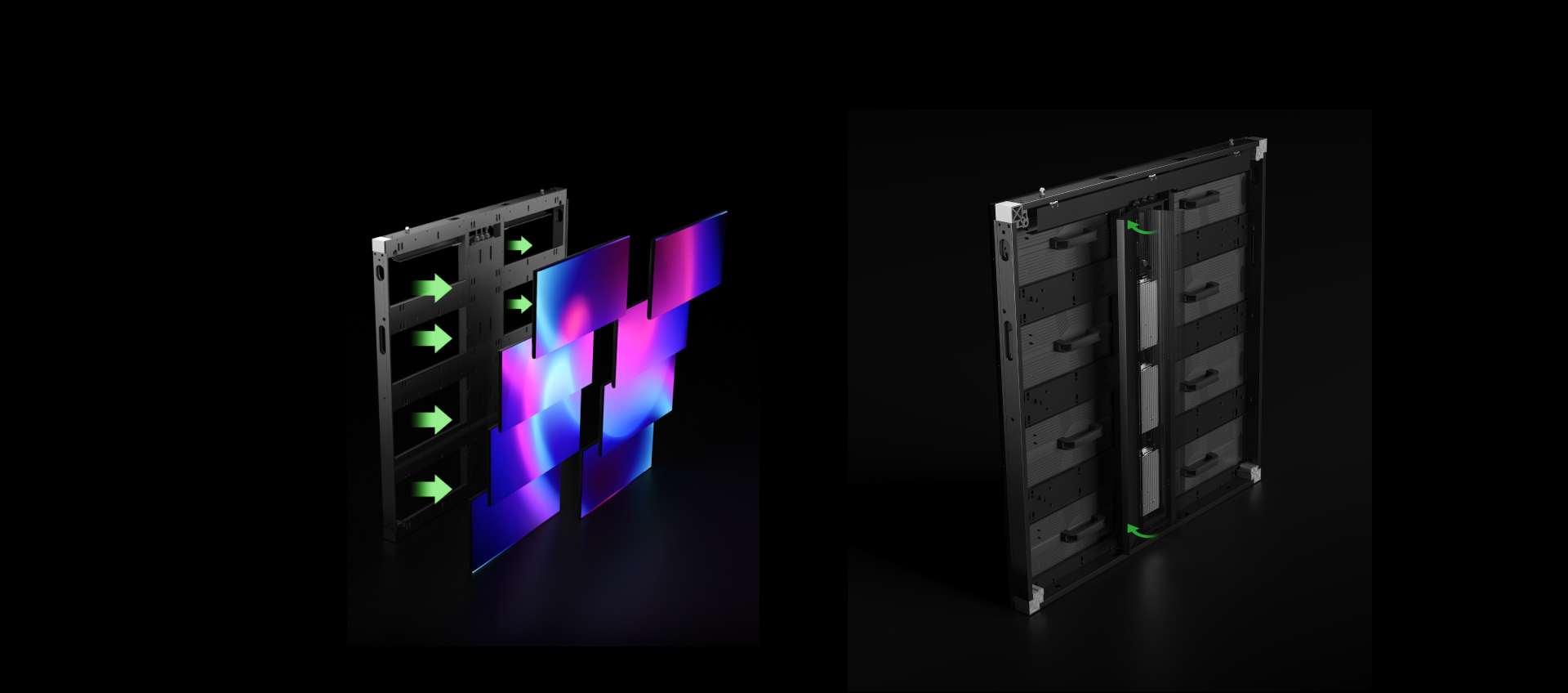

Quick And Easy Maintenance

Power boxes feature front-side access, eliminating the need for rear maintenance space and saving valuable room. Complete repairs in just 20 seconds and swap LED modules in 10 seconds—drastically cutting downtime and reducing maintenance costs.

20s
Replace Power Box
10s
Replace the module

Specifications

Physical Parameters DEG5639 DEG5648 DEG5659 DEG5678 DEG56A0
Pixel Pitch 3.9mm 4.8mm 5.9mm 7.8mm 10.4mm
Cabinet Size(W x H x D) 1000 × 750/1000/1250 × 68mm 1000 × 750/1000/1250 × 68mm 1000 × 750/1000/1250 × 68mm 1000 × 750/1000/1250 × 68mm 1000 × 750/1000/1250 × 68mm
Cabinet Weight 24/19/30kg 24/19/30kg 24/19/30kg 24/19/30kg 24/19/30kg
Optical Parameters
Brightness(nits = cd/m²) 5000/6000 5500/6500 5800/7000/8000 6000/8000/10000/12500/15000 6000/8000/10000/12500/15000
Refresh Rate(Hz) 7680 7680 7680 7680 7680
Contrast 10000:1 10000:1 10000:1 10000:1 10000:1
Other Parameters
Maintenance Front & Rear Access Front & Rear Access Front & Rear Access Front & Rear Access Front & Rear Access
Protection Level IP66 IP66 IP66 IP66 IP66

All the data are from CVTE lab. The data above are subject to change without prior notice.
