B71HD Series
High Transparency Inside, High Impact Outside

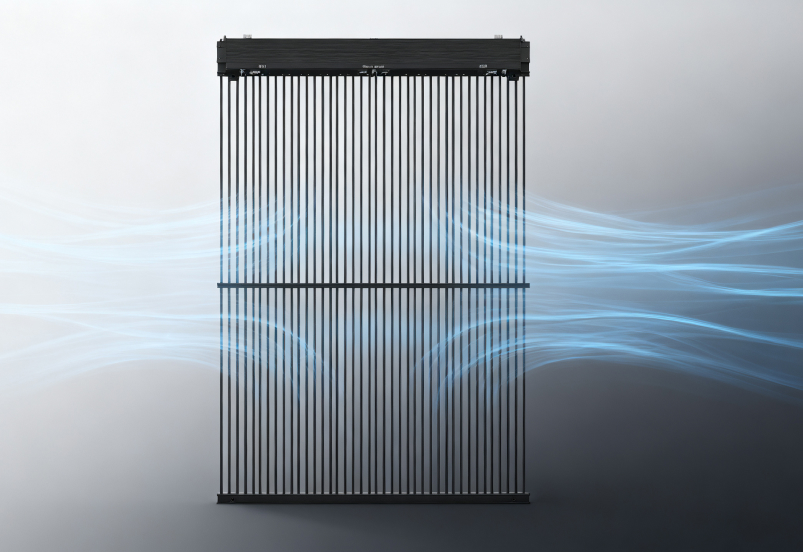

Our innovative open-mesh design and high-transparency layout achieve 67% light transmission. It preserves the building's natural light and ventilation while transforming it into a stunning dynamic advertising platform after dark.
Design Without Limits

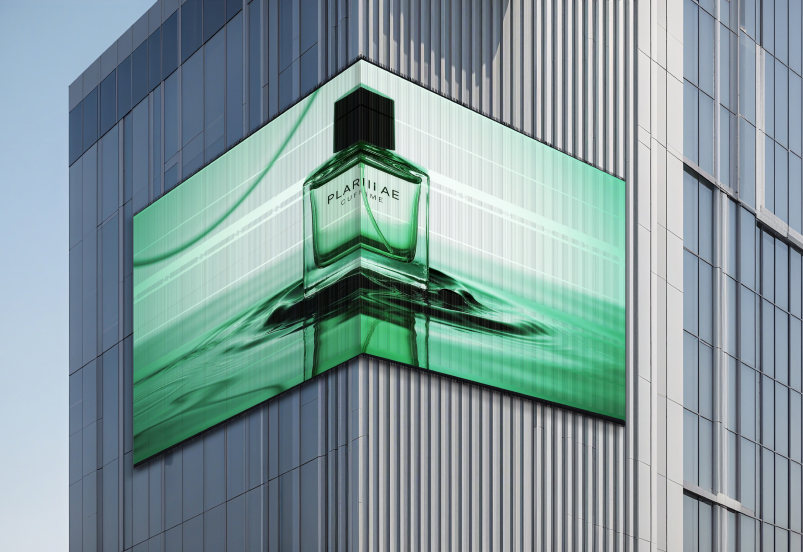

Break free from traditional rectangular limits. Our modular technology enables seamless 90° angles and smooth curves, giving you the freedom to turn any architectural vision into a stunning media canvas.
Lower Bills, Higher Returns

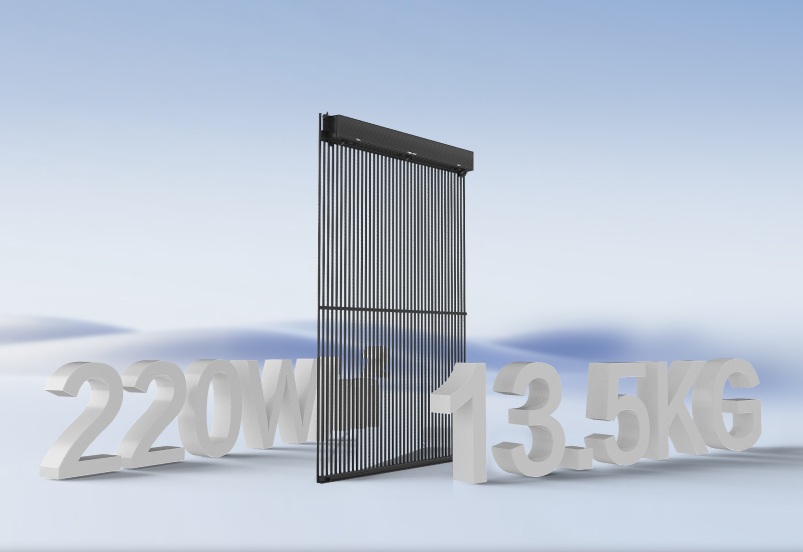

Our advanced power systems and smart energy tech deliver ultra-low consumption (220W/m²), drastically cutting your long-term electricity expenses and boosting your project's ROI.
Unmatched Sunlight Readability
Equipped with 8000-10000nit high-brightness modules and optimized optical enhancement technology, it ensures the display remains vivid and vibrant even under direct noon sunlight, significantly boosting advertising effectiveness.

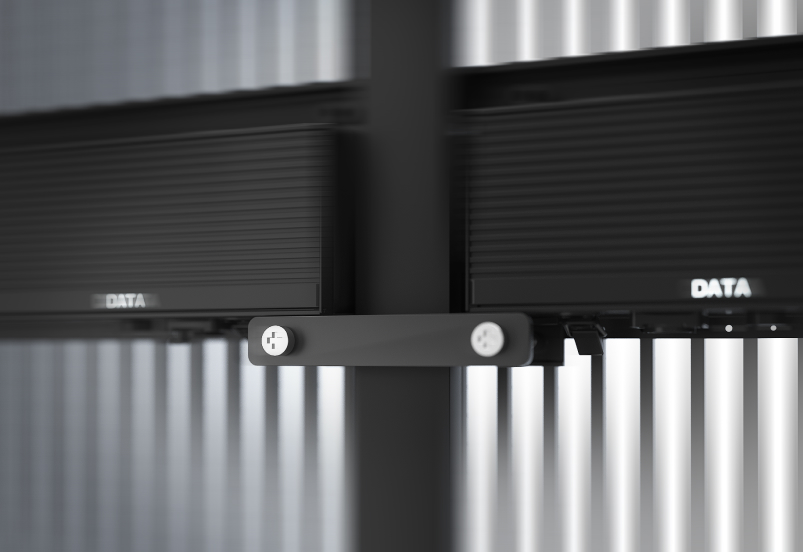

Rapid Deployment, Faster ROI
• Ultra-Lightweight: 13kg/㎡ cabinets for easy and quick handling.
• Quick-Bolt System: Simplifies alignment and secures cabinets in seconds.
• Reduces Structural Costs: Lowers the required precision and strength of support steel.
• Cuts Labor Time: Significantly accelerates the entire installation process.
Safe, Silent, Sustainable
• Safe for Sensitive Spaces: CLASS B EMC certified for worry-free use in crowded areas such as malls office buildings and homes.

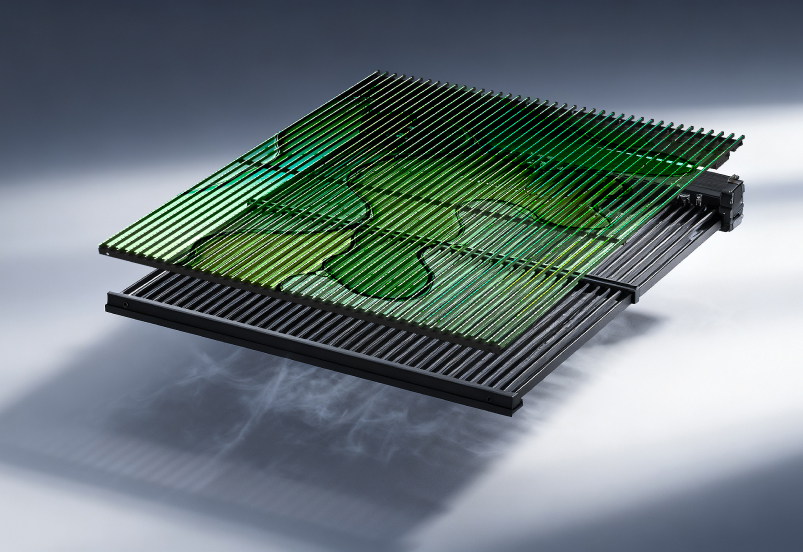

• Whisper-Quiet Operation: Fanless cooling technology eliminates noise pollution, putting people's comfort first.
• Responsibly Made: RoHS compliant, ensuring no hazardous substances are used in production.
Max Protection, Min Maintenance
With an IP65 rating achieved by dual-potting technology. Engineered for relentless outdoor performance and reduced upkeep.
Specifications
| Physical Parameters | B56HD | B71HD | B44HD | B62HD |
| Pixel Pitch | 31.25×15.625mm | 31.25×15.625mm | 31.25×15.625mm | 31.25×15.625mm |
| Cabinet Size(W x H x D) | 1000×1000×72mm | 1000×1500×72mm | 500×1000×72mm | 500×1500×72mm |
| Cabinet Weight | 17kg | 20kg | 8kg | 10kg |
| Optical Parameters | ||||
| Brightness(nits = cd/m²) | 8000/10000 | 8000/10000 | 8000/10000 | 8000/10000 |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| Contrast | 6000:1 | 6000:1 | 6000:1 | 6000:1 |
| Other Parameters | ||||
| Maintenance | Front /Rear | Front /Rear | Front /Rear | Front /Rear |
| Protection Level | IP65 / IP65 | IP65 / IP65 | IP65 / IP65 | IP65 / IP65 |
All the data are from CVTE lab. The data above are subject to change without prior notice.
