F27 Series

Connect & Go, The Industry Standard

F27 Series
Overview Specifications

16:9, 2K/4K Rapid Deployment

Featuring a 16:9 golden ratio cabinet with native pixel-to-pixel display, enabling quick and seamless assembly to achieve standard 2K/4K resolution.

Vivid Imagery, Uniform Clarity

Equipped with a PWM constant-current drive chip for exceptional grayscale performance even at low brightness, preserving fine image details. A 170° ultra-wide viewing angle ensures clear visibility from any position in spaces like showrooms and meeting rooms.

Flexible Use. Secure & Simple

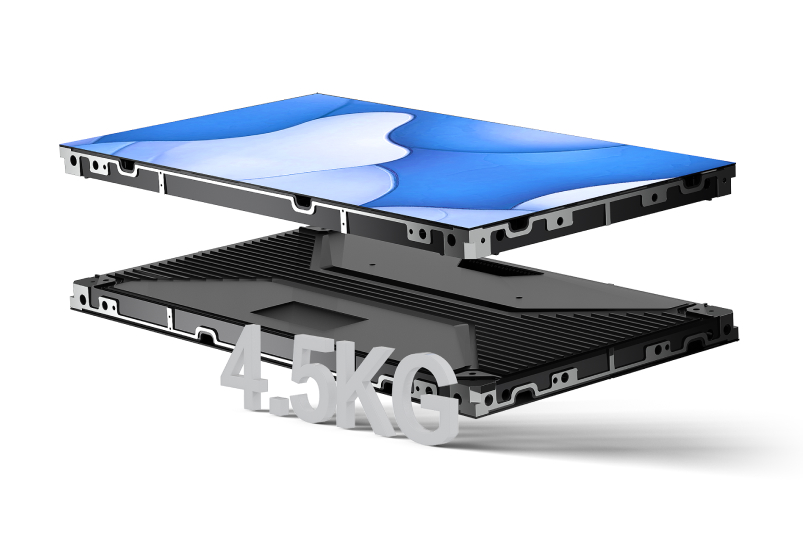

At just 31mm thin and 4.5kg light, it supports both wall-mount and recessed installation, adapting seamlessly to various wall environments with complete safety. With nearly invisible seams, it integrates perfectly into corporate settings, delivering a clean, minimalist visual aesthetic.

Highly Integrated, Truly Reliable

QSTECH‘s 3 in 1 design combines the power supply, receiver card, and adapter board into a single unit, reducing internal cabling for easier installation and enhanced system stability and reliability.

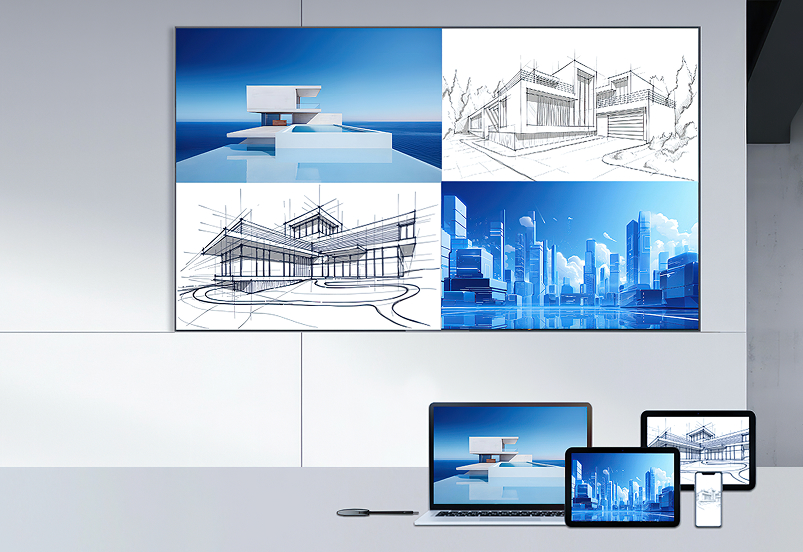

Go Wireless, Stay Smart

Pairs with our self-developed OS for smooth, cable-free screen mirroring and exceptionally user-friendly controls, creating a streamlined and efficient presentation experience.

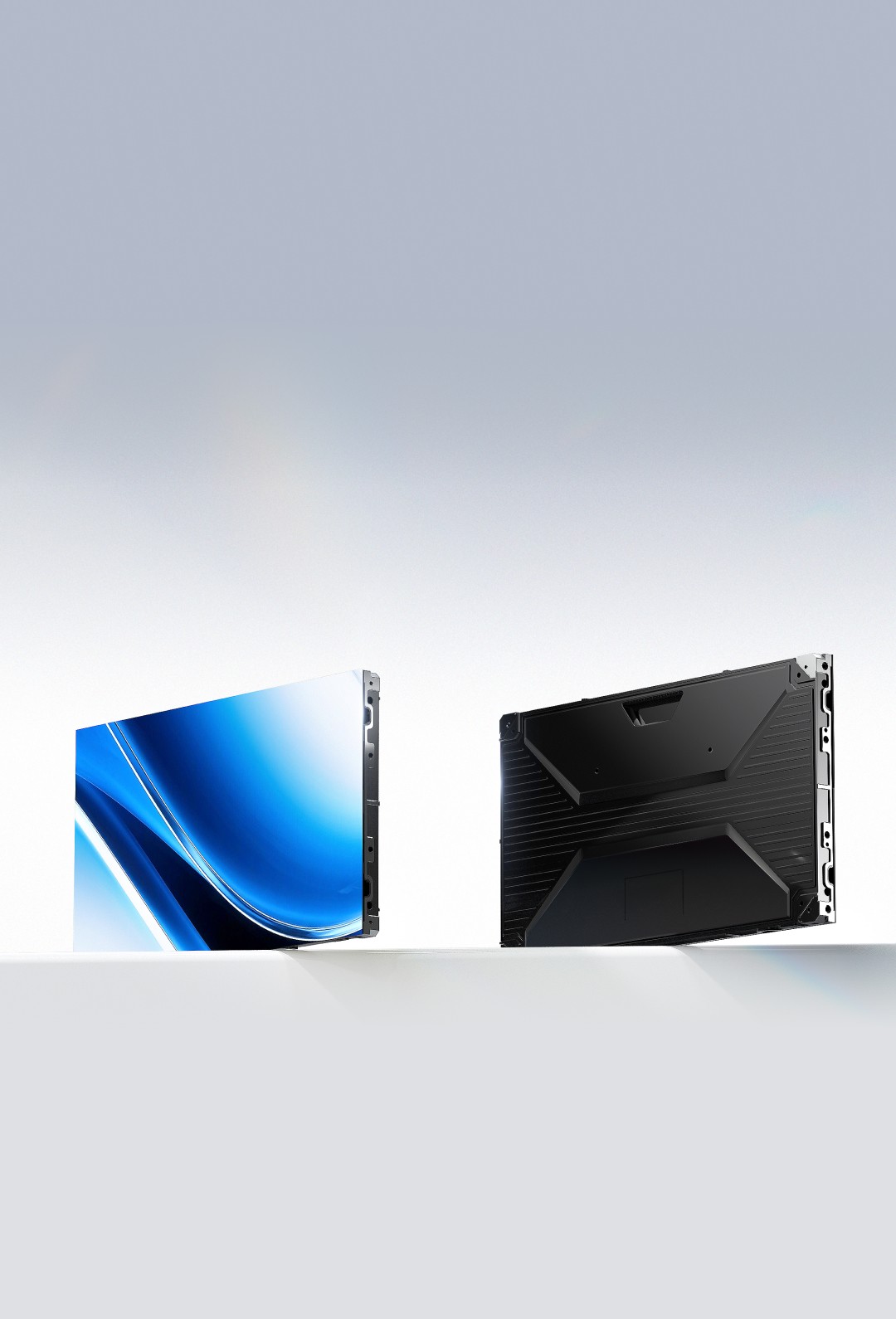

Swap, Done

• Self-Calibrating Panels – Built-in memory for instant swaps. Zero recalibration.

• Front Service Access – No rear clearance needed. Fast one-person operation.

• Real-Time Protection – Dual safeguards for worry-free, reliable operation.

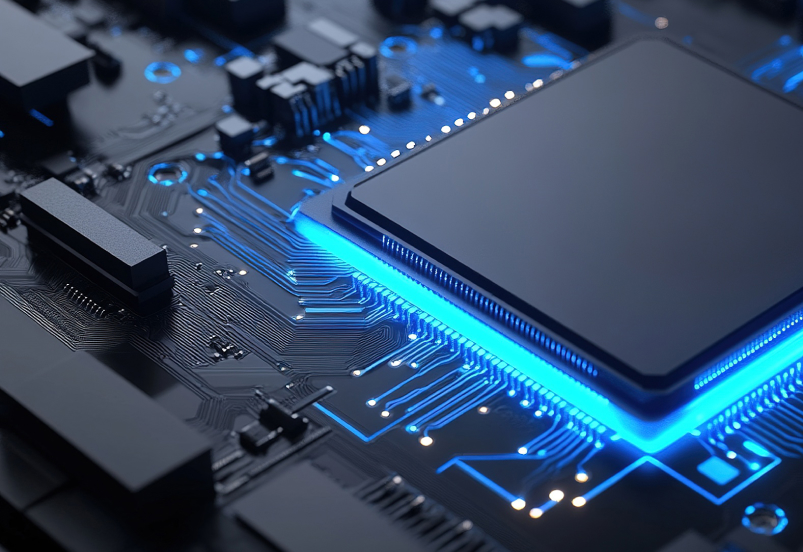

Chip-Level Efficiency, Built To Save

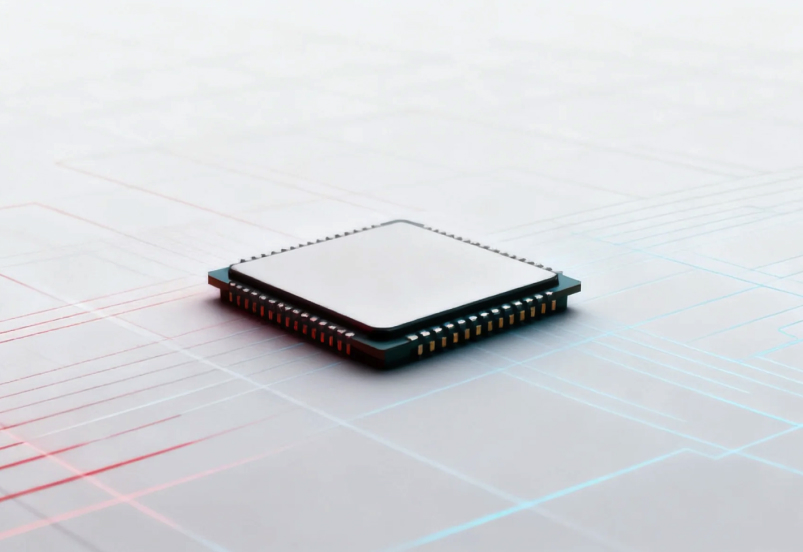

QSTECH’s patented dynamic energy-saving technology delivers precise voltage control via RGB chips and dual power pathways, cutting energy loss at the source. The result? Significantly lower power consumption and reduced costs over time.

Specifications

Physical Parameters DF2712 DF2715 DF2718 DF2725
Packaging SMD SMD SMD SMD
Pixel Pitch 1.2mm 1.5mm 1.8mm 2.5mm
Cabinet Size(W x H x D) 600×337.5×31mm 600×337.5×31mm 600×337.5×31mm 600×337.5×31mm
Cabinet Weight 4.5kg 4.5kg 4.5kg 4.5kg
Optical Parameters
Brightness(nits = cd/m²) 600 600 800 800
Refresh Rate(Hz) 3840 3840 3840 3840
Contrast 6500:1 6500:1 6500:1 6500:1

All the data are from CVTE lab. The data above are subject to change without prior notice.
