LED Display Showroom Case Study: Making Digital Industrial Capabilities Easier to See

Visitors to this Shandong technology showroom follow a blue light band through the space. Along the way, they encounter the company's industrial services, smart-park platform, equipment applications and interactive content. Each area has a different job to do, but the screens need to feel like part of one visit.

QSTECH provided the indoor FM27 Series and the flexible TXX Series. FM27 is used for flat-wall displays, vertical information screens and a wide data wall. TXX forms the curved screen in the immersive zone. The result is a display plan that gives the showroom one visual language without forcing every area into the same format.

A showroom built around the visitor route

The company needed to explain more than its corporate profile. Visitors also needed to see industrial equipment applications, digital-transformation workflows, a smart-park map and a digital-twin platform. The material shifts between small type, UI pages, charts, diagrams, photographs and motion content.

That mix makes display planning more demanding than a standard video wall. People view the screens at different distances, often while moving through the showroom. The screens also sit alongside interactive tables, equipment exhibits and physical graphics. The aim was to keep the information readable and the journey easy to follow.

FM27 handles the information-heavy areas

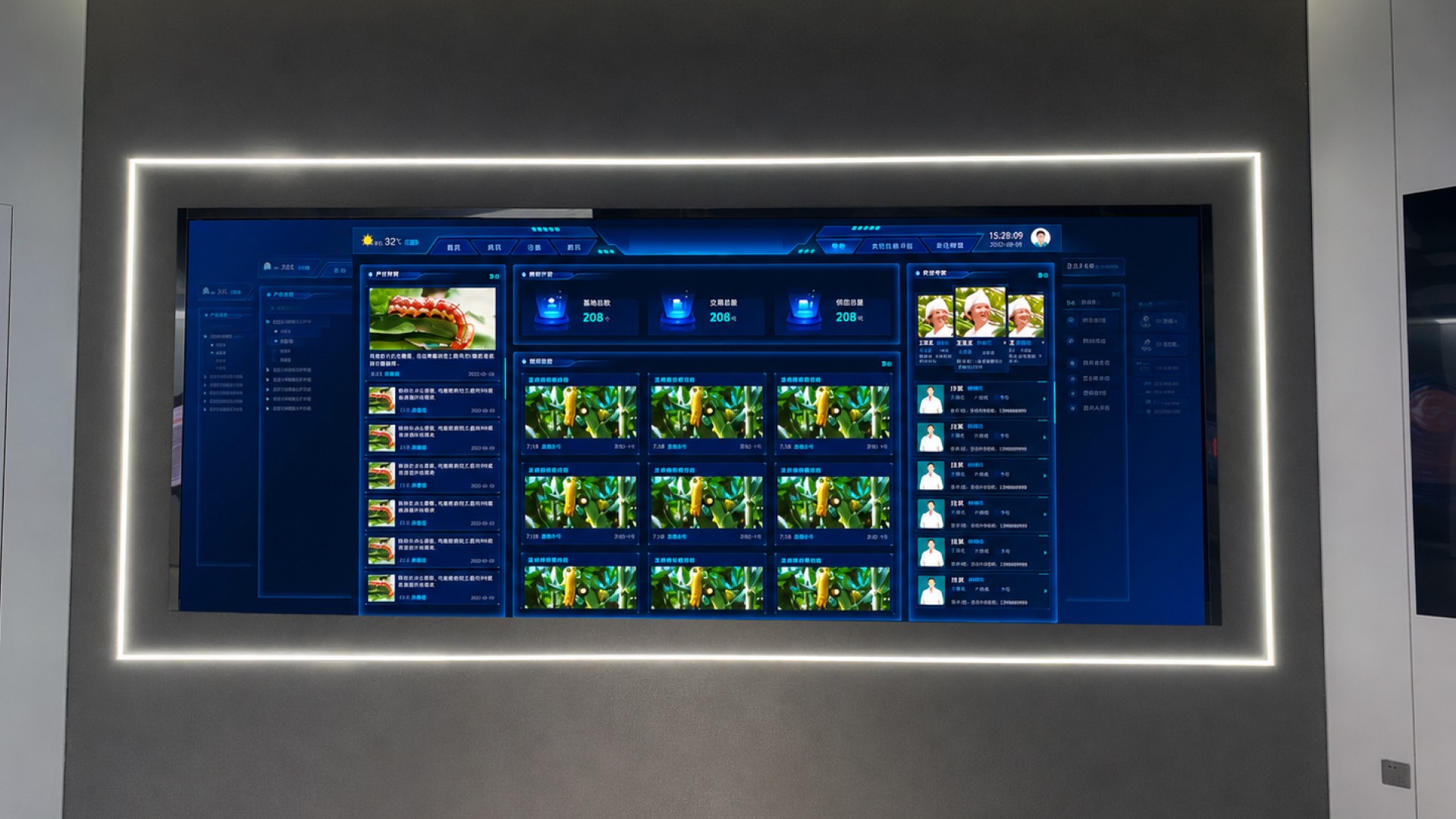

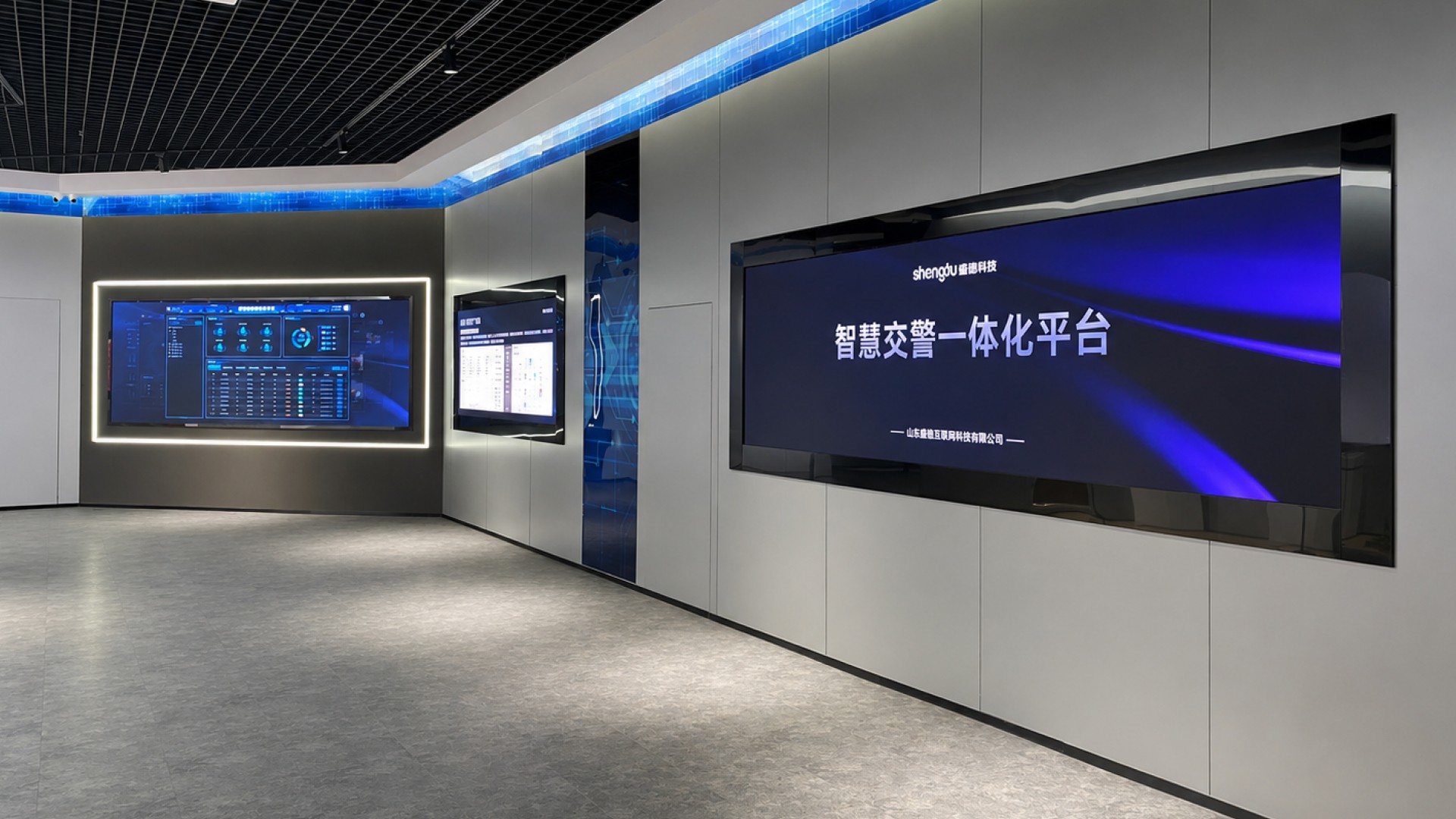

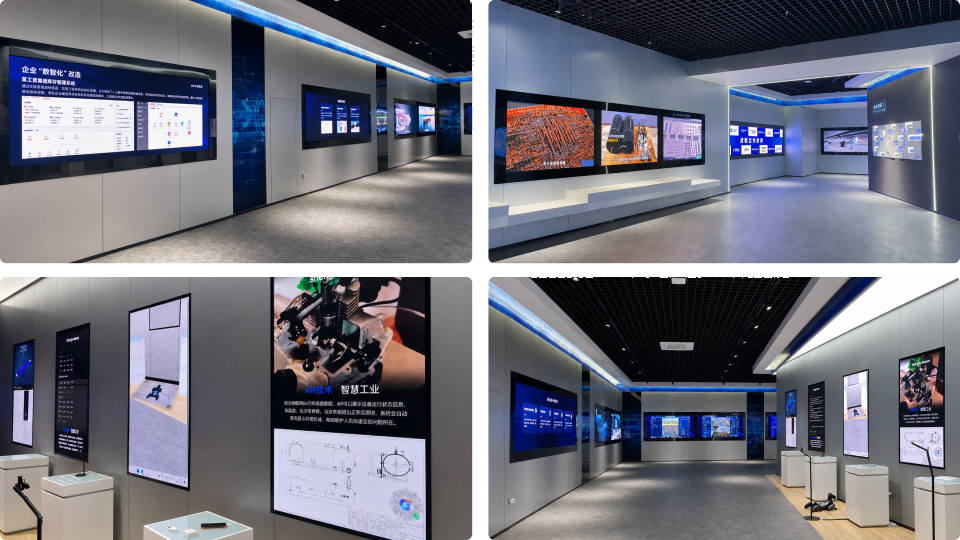

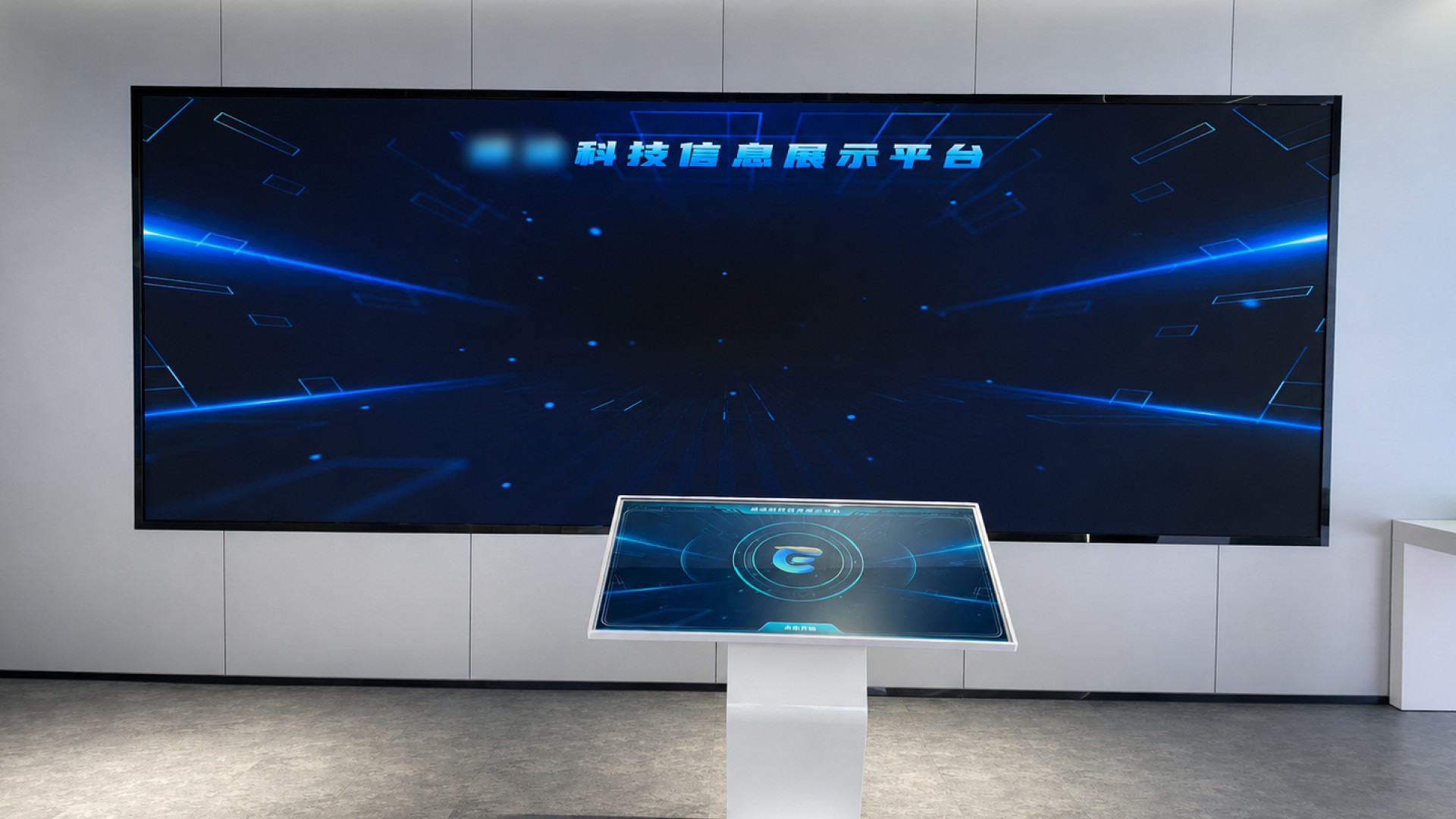

FM27 appears in the corridor, presentation walls and interactive areas. The corridor screens introduce the company's digital services and industrial use cases. Further into the showroom, the displays show park maps, equipment status and platform dashboards.

These are not purely video-led surfaces. They carry diagrams, tables, labels and interface elements that need to remain legible at close range. QSTECH lists the FM27 Series with a 3840 Hz refresh rate. For this type of showroom content, the specification supports the presentation of video, scrolling information and moving data visualizations. The final result still depends on pixel pitch, source content, signal settings, ambient light and the approved installation.

One platform, different display choices

FM27 is available in SMD and COB versions. This gave the project team two display options within a common cabinet platform, rather than requiring an unrelated product range for every zone.

COB can be specified where close viewing and contrast are priorities. SMD remains a practical option where familiar display technology and service access guide the decision. The choice should follow the actual viewing distance, content resolution, maintenance plan and budget for each part of the showroom.

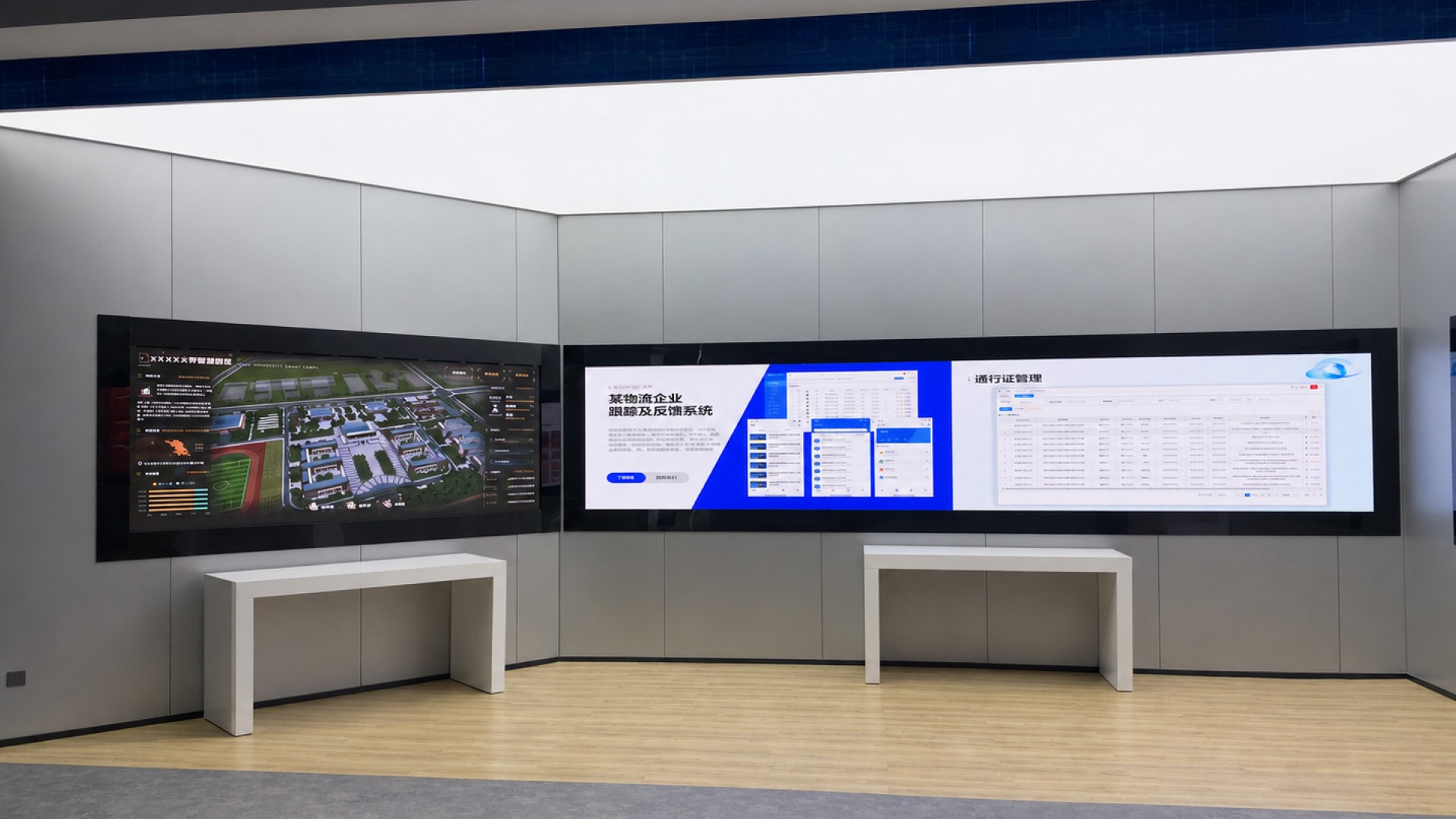

In the equipment zone, portrait displays sit beside graphics, AR-related content and QR codes. A separate ultra-wide screen carries process diagrams, platform pages and data views. In both cases, the display is used as part of the information layout, not as a background for a looping video.

Curved LED display for the immersive zone

The showroom includes corners, a curved backdrop and interactive installations, so flat walls were only part of the brief. FM27 supports wall-mounted, hanging, floor-standing, corner, curved and column installations, subject to the final engineering design.

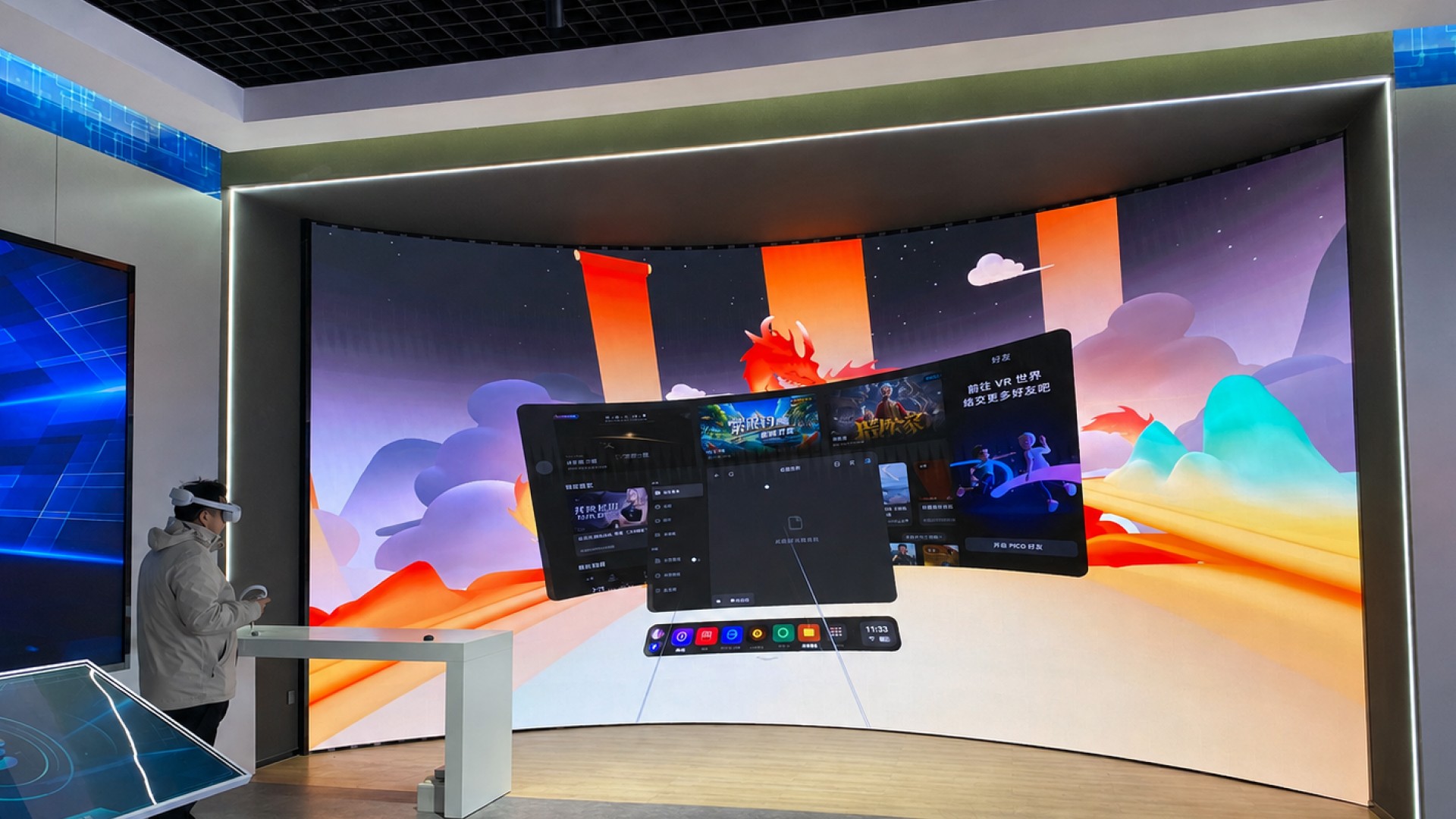

The immersive zone uses TXX flexible LED modules to create a curved display. The modules follow the shape of the wall, allowing the digital content to wrap around the visitor rather than stop at a flat rectangular edge. It is a straightforward fit for digital-twin scenes, product demonstrations and interactive content where the room itself is part of the experience.

QSTECH specifies the TXX Series with a 3840 Hz refresh rate and a viewing angle of more than 140 degrees. The series is designed for curved walls and cylindrical screens. Curve radius, pixel pitch, module layout, content mapping and support structure must be confirmed for the final project.

Digital-twin content in a shared view

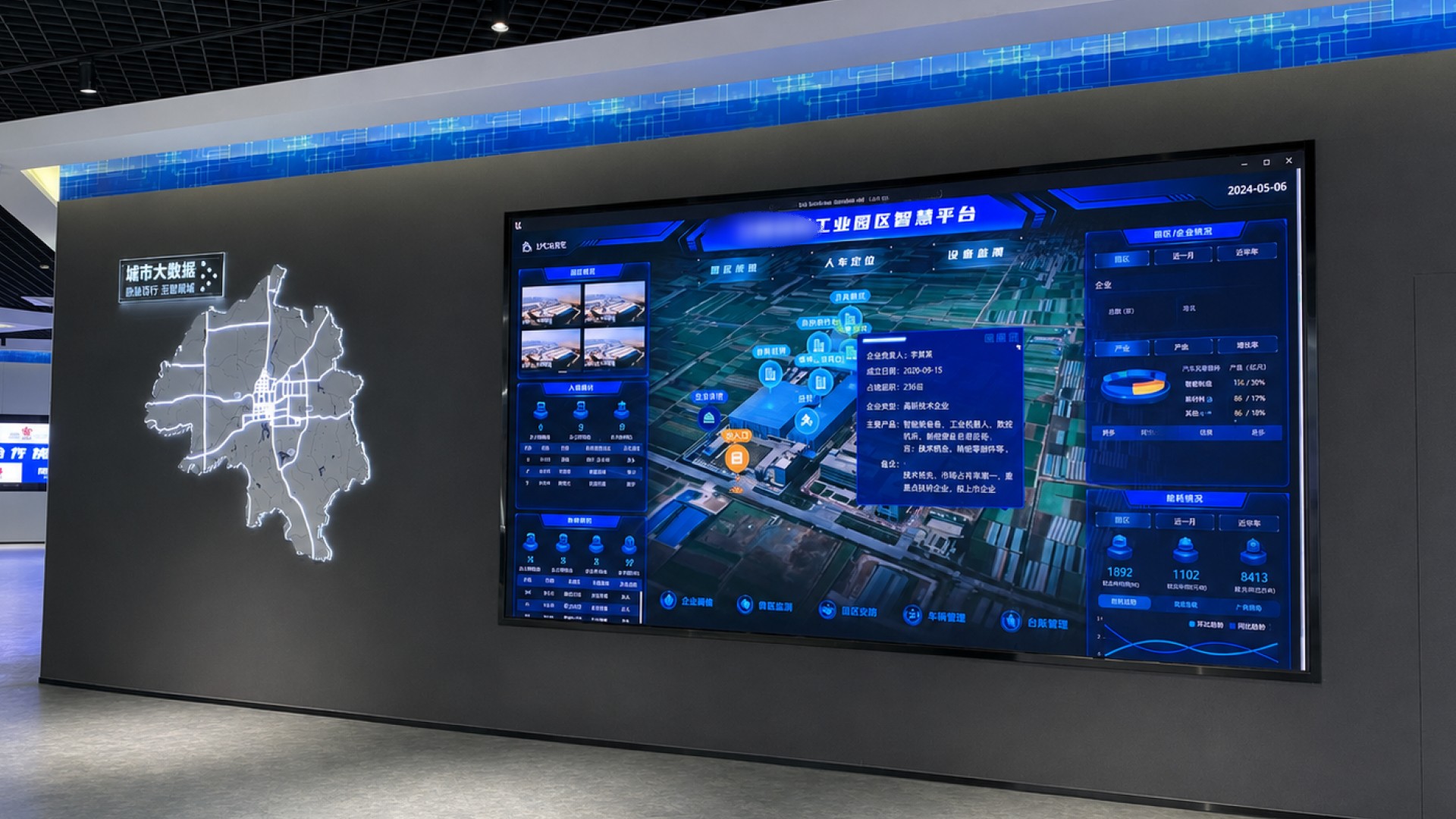

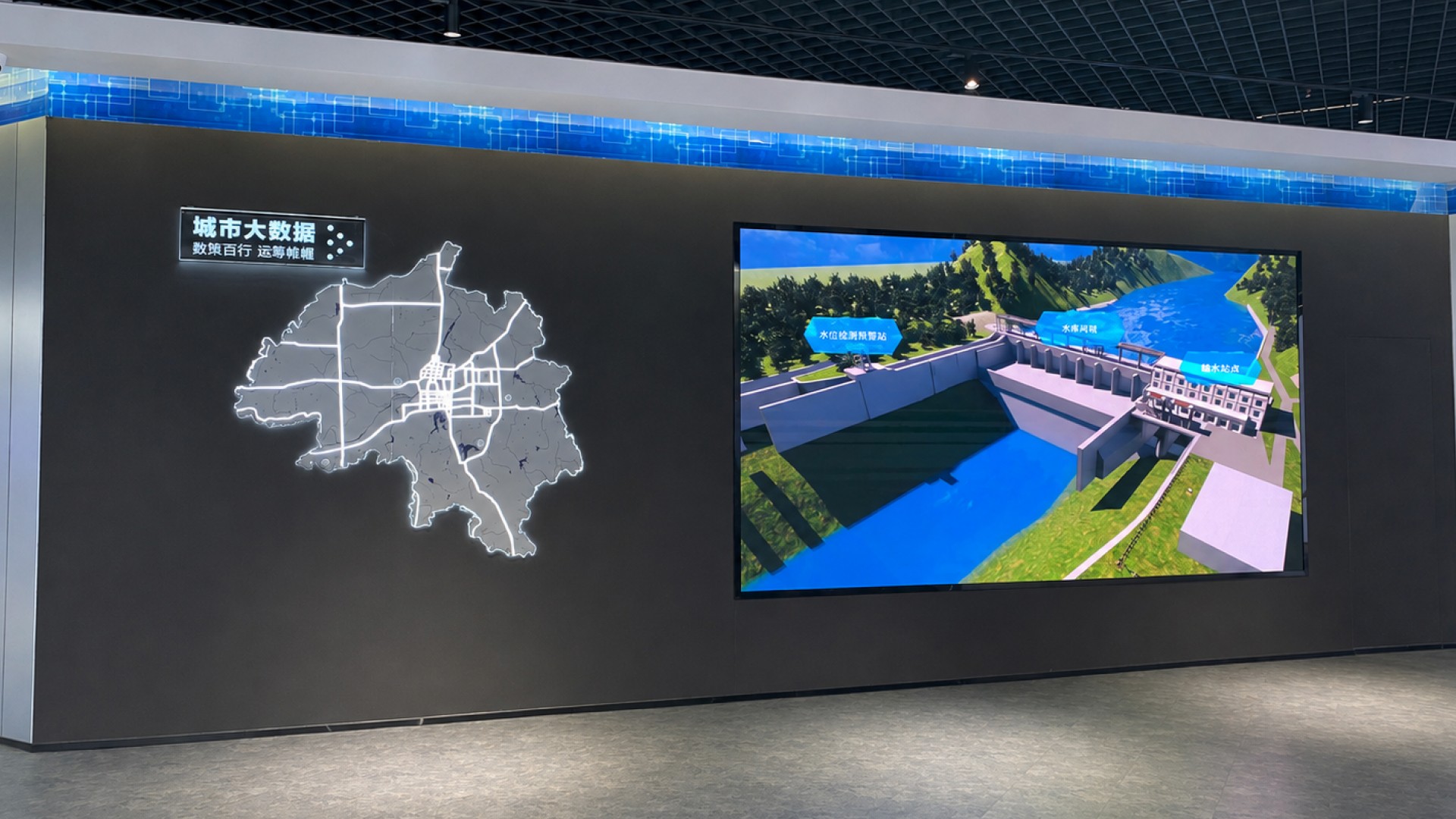

The digital-twin park model appears on an FM27 LED screen alongside VR interaction. Visitors can see the park layout, planning information and example application scenarios in one place, then explore details through the interactive experience.

This arrangement makes the platform easier to discuss during a visit. Instead of explaining the system through screenshots or separate pages, the showroom team can bring maps, process stages, equipment information and live-style interface views into a shared display. The LED screen is not the platform itself; it is the place where the platform becomes visible to a group.

Choosing LED displays for a technology showroom

FM27 uses a 600 x 337.5 x 31 mm, 16:9 cabinet. QSTECH lists the cabinet weight as 3.4 +/- 0.1 kg. The series also has large modules, optional quick locks and full front service. These details matter during installation and later maintenance, although delivery time will still depend on the screen size, mounting method, site access and final configuration.

What the project shows

The project uses FM27 for the places where visitors read and compare information: corporate content, platform dashboards, process flows and digital-twin views. TXX is used where the screen needs to follow the curved architecture of the immersive area.

For a technology showroom, display choice should start with the visitor route and the content to be explained. Once those are clear, screen format, pixel pitch, installation method and service access can be selected with fewer compromises.

About QSTECH

QSTECH is an LED display solution provider and a CVTE subsidiary. Its portfolio includes indoor and outdoor LED displays, fine-pitch LED, All-in-One LED displays and creative LED solutions for commercial, corporate and professional AV environments. For showroom projects, QSTECH works with customers and partners on display configuration, viewing conditions, installation requirements and service access.

FAQ

1. What LED display is suitable for a technology showroom?
An indoor LED display should be selected based on viewing distance, content density, available installation space and maintenance requirements. This project used FM27 for flat information displays and TXX for a curved immersive area.

2. Why use different LED display forms in one showroom?
Flat displays suit dashboards, diagrams and corporate information, while flexible LED displays can support curved or cylindrical installations. Combining formats can help match the display surface to each spatial and content requirement.

3. Can FM27 be used for digital-twin visualization?
FM27 can be configured for indoor visualizations such as platform interfaces, maps, process flows and operational-data views. Pixel pitch and screen size should be specified according to the required viewing distance and native content resolution.

4. What is TXX flexible LED display used for?
TXX is designed for creative LED installations, including curved walls and cylindrical screens. Its suitability depends on the required geometry, module layout, engineering design and content mapping.

5. How should a showroom plan LED display maintenance?
Maintenance planning should cover the mounting structure, rear or front access, service clearance, spare parts and the operating environment. FM27 supports full front service, but the final maintenance route must be confirmed in the project design.
