S72 Series

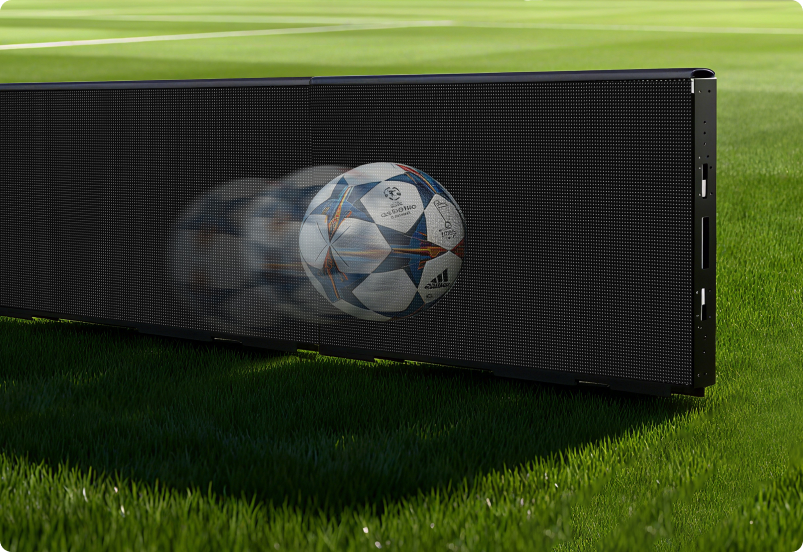

Built To Take A Hit
• Dual-Safety Design: Protects critical hardware and ensures non-stop play.
• Elastic Front Faceplate: Absorbs high-speed impacts from balls.
• Shock-absorbing Top Pads: Minimizes collision risk for players.
Ultra-Stable 4-Layer Backup
• Quadruple Redundancy: Power, signal, receiver cards, hardware links.
• Zero Blackouts: Continuous playback even during component failure.
• Built For Live Broadcast: Ensures every moment is captured perfectly.
Unmatched Viewing Experience, Wherever You Are
• See Every Detail in Perfect Clarity: Our 7680Hz refresh rate eliminates motion blur, capturing the fastest action with stunning precision.
• Broadcast-True Color: Experience colors that match the live action perfectly, ensuring maximum impact for advertisers.
• Every Seat is the Best Seat: A 160° wide viewing angle guarantees a vibrant, consistent image from anywhere in the stadium.
Win the Race Against Time, 20-Second Swap
• Eliminate Event Disruption: Ensure your schedule is always protected. • Slash Ownership Costs: Dramatically reduce downtime and long-term maintenance fees.
• Swap in Seconds, No Tools Needed: Empowering any staff to perform maintenance instantly.

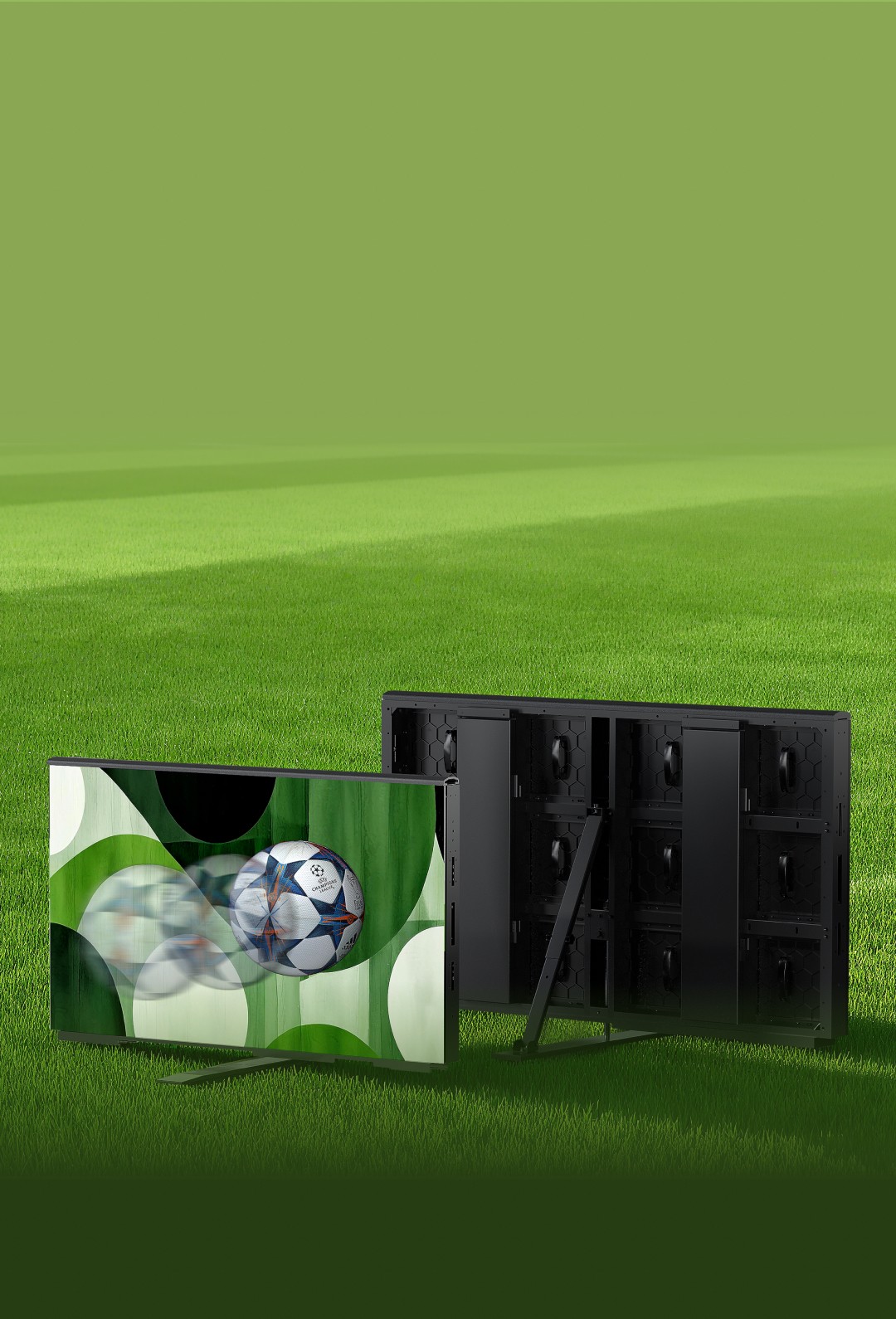

• Full Front/Rear Access: For effortless and ultra-fast module replacement.
IP65 Protection, Silent By Design
• Efficient & Durable: Reliable, energy-saving design built for the long haul.
• Defies the Elements: Sealed IP65 rating guarantees.
• Whisper-Quiet Operation: Fanless cooling means zero noise to distract players or fans.
Ultimate Venue Flexibility
• Maximize Venue Value: Unlock your space for revenue-generating activities every day.
• Fast, Rigging-Free Setup: Self-contained cabinets deploy quickly anywhere.
• Dual Use Design: Ideal for both temporary events & permanent installations.
• Space-Saving Storage: Nests compactly when not in use.
Specifications
| Physical Parameters | SP-S 6250S | SP-S 6250U | SP-S C100S | SP-S C100U |
| Pixel Pitch | 6.2mm | 6.2mm | 10mm | 10mm |
| Cabinet Size(W x H x D) | 1600×960×120mm | 1600×960×120mm | 1600×960×120mm | 640x480x50m |
| Cabinet Weight | 46kg | 46kg | 46kg | 6kg |
| Optical Parameters | ||||
| Brightness(nits = cd/m²) | 6000 | 6000 | 6000 | 6000 |
| Refresh Rate(Hz) | 3840-10000 | 3840-10000 | 3840-10000 | 3840-10000 |
| Contrast | 6000:1 | 6000:1 | 6000:1 | 6000:1 |
| Other Parameters | ||||
| Maintenance | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Refresh Rate(Hz) | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 |
All the data are from CVTE lab. The data above are subject to change without prior notice.
